Model BDVG-100 -Block of Detection

Detection block BDVG-100 is intended for monitoring the fields of ionizing emission according to the power of gamma-radiation dose and detection of slight changes in the flow density of gamma-radiation at background level.Output signal is a sequence of normalized, statistically distributed pulses,it contains measurable data about flow density (equivalent dose power) of gamma-radiation.

1. Operational temperature range is from minus 40 to +55 ° C.
2. Limit of the permissible relative error is not more than 10% for every ± 10 ° C ambient temperature deviations from normal.
3. Level of the enclosure protection - IP65 of GOST 14254.
4. Type of the climatic performance - UHL of GOST 15150.
5. Unit belongs to class 0 of protection against electric current according to GOST 12.2.007.0.
6. Unit is resistant to sinusoidal vibrations according to group 2 of GOST 12997.
7. According to the electromagnetic properties this block goes to the elements of normal operation, that are important for the safety of the group III, the criterion of quality is A of GOST R 50746.
8. The Block is decontamination solutions-resistant

The block resource before the complete overhaul is 20000 h during 10 years of service, including 1 year of user’s storage in the producer’s packing in a warehouse on category 1.1 of GOST 15150.
Interrepair service life is 5000 h with medium repairs during the service period.
Warranty period of operation is 18 months from the moment of putting into operation or if the guarantee period of storage is expired.
Guarantee period of storage - 6 months from the moment of sale.

Block of detection BDVG- 100 - ____ 1 pcs
Block of detection BDVG- 100. Passport - 1 pcs

Power supply – DC voltage 12,6 v. The consumed current is not more than 30 mA.

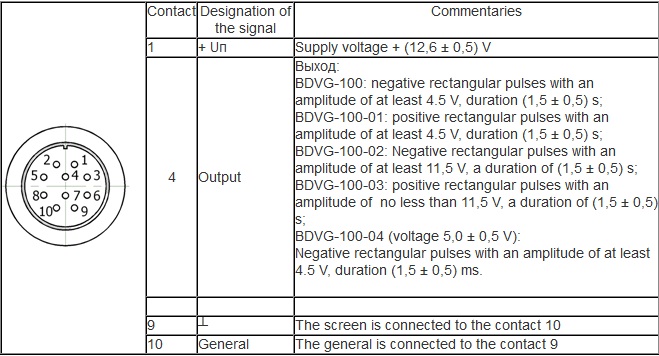

Designation of the joint contacts (plug RS -10) of the block.
