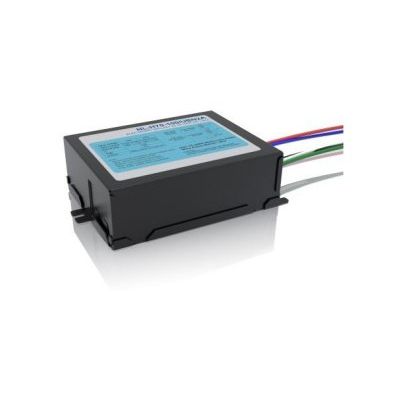

Model BL-22 -Hid Lamp Ballast

FromBeijing Charmsstone Electronics Technology Co.,Ltd.

SHARE

CE UL approval. Preheat start. Advanced driver IC. Wide range voltage, constant power. Local/remote working condition indicator. Suitable for 22W Metal Halide. Voltage:220V 50/60Hz.

Max case temperature is 80°C.
Max ignition voltage is 4kV.
If lamp does not be lighten ,bllast will be automatic stop working after 25 minutes.
Ballast stops working due to protection and other reasons, if you disconnect the ballast supply voltage, the source must be one minute later to re-supply.
Ballast power supply must be disconnected before replacing the lamp.

Short-circuit protection.
Open circuit protection
Light failure protection
End of lamp life protection.
