Model BLU -Small Size Optical Measurement System
Small size Lcd&BLU optical measuring system, which carries the luminance meter mainly for the luminance and color uniformity measurement of backlight module. Backlit measurement systems aims at providing accurate optical performance measurement data for LCD, PDP, OLED and LED display, and LED, CCFL backlight development; Backlit measurement systems is mainly used in laboratory, engineering development and QA/QC etc.

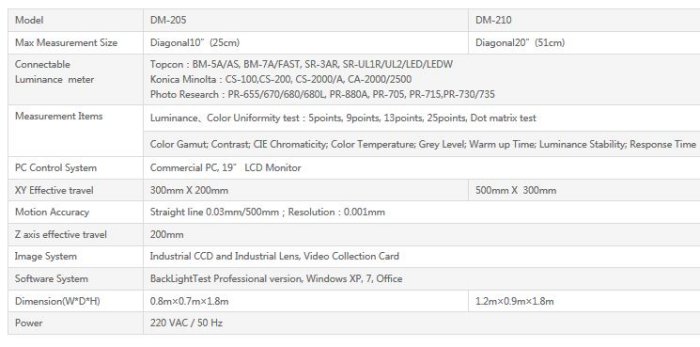

Small Size BLU Optical Measurement System Overview
- Product horizontal placement, optimized for displays up to 20”
- Fully automatic 2-axis control platform, product XY linear motion.
- Z axis can adjust the height. automatically or manually.
Easy to use
Windows system based, users can finish the whole measurement process, the flexible module allows any operator to select a predefined test configuration to finish the whole measurement.
Standard and Custom Tests
Based on VESA, ICDM, TCO, ISO, SJ/T and other display measurement tests or customized tests, DM Series Measurement System can be set up to run.
- BackLightTest professional measurement software
- Various quantitative analysis tools, including contour charts, CIE chromaticity analysis
- Support the performance analysis of different sampling area of various specification products
- Manual & automatic system control, initial positioning via remote control and image window
- Without fixing at right angles for product testing
- Custom various test sequences, uniformity 5 points, 9 points, 13 points, 25 points, dot matrix test, flat test
- With a signal generator connected to provide various signals automatically
- Export to Excel
- Automatic tracking algorithm for test points
- Field installation commissioning and training
- Software upgrade for free
- Luminance Uniformity
- Chromaticity, Color temperature, Color uniformity
- Contrast, Color gamut
- Gray level, Gamma
- Shadowing（Cross Talk）
- Response time
- Warm up time, Luminance stability
- OLED I-V-L
- Mobile phone backlight, module
- Tablet backlight, module
- Aerospace, Military small display
- Laptop backlight, module
- Automotive Display
