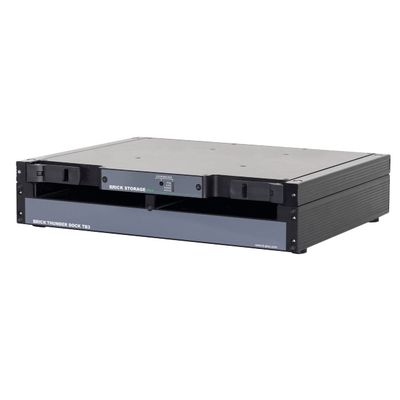

Model BRICK Thunder Dock TB3 -Docking Station

SHARE

The BRICK Thunder Dock is designed to connect a BRICK Storage Cartridge or BRICK Storageplus via Thunderbolt™ 3 interface to a PC-System. Easy to connect to any PC with integrated Thunderbolt™ 3 interface.

  • High bandwidth data download
  • Robust and reliable housing
  • Works with BRICK STORAGE and BRICK STORAGEplus


Supply voltage: 12 V DC 5A
Storage interface: BRICK STORAGE
PC interface: Thunderbolt™ 3
Housing dimensions: 320 x 66 x 250 mm
Cooling: Active
Weight:  3 kg
Operating temperature: 0 °C to +40 °C
Storage temperature: -40 °C to +75 °C
Air humidity: 90 % non-condensing
IP protection class: IP20
