Model BTI 3 -Ammonia Vapor Breakthrough Saturation Indicator

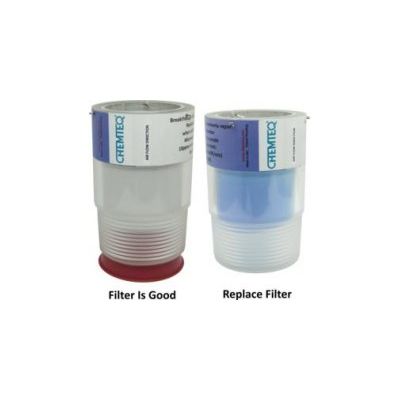

The Ammonia vapor Breakthrough indicator for Activated Carbon Absorbers and Filters is a colorimetric indicator that indicates the saturation and exhaustion of carbon absorbers and filters. The indicator is reliable and cost effect means for protection from exposure to toxic ammonia and hydrogen sulfide in the work place. The indicator change color from light blue to purple when carbon absorbers and filters are saturated with ammonia vapor.

Most popular related searches

vapor breakthrough indicator

carbon absorption filter

vapor breakthrough

breakthrough indicator

activated carbon absorption

breakthrough saturation indicator

carbon filter

colorimetry indicator

activated charcoal

activated carbon

Hence alerting the user to replace the exhausted carbon absorber or filter. The indicator is easily connected to the 2½ inch female NPT outlet of the carbon absorber or filter using the 2½ inch male NPT threading at the bottom of the indicator. It is highly sensitive to ammonia vapor. It operates at temperatures -20^oC to 65^oC (-4^oF to 149^oF) and humidities 5% RH to 95%RH. The indicator is 4.5 inch tall, 3 inch diameter and you can observe the bright vibrant color change from all directions. The unique design of the indicator prevents any color change due to exposure to contaminants in the surrounding environment and changes color only when carbon absorber or filter is saturated. The indicator has extended service life of 2 years and 2 years shelf life.

Product Specifications

a Weight: 204.5g (7.2oz)
b Dimensions: 11.43cm (4.5in), diameter 7.62cm (3.0in)
c Inlet dimensions: 2.5" MNPT
d Operating temperature: -20oC to 65oC (-4oF to 149oF)
e Operating humidity: 5% RH to 95%RH
f Minimum detectable limit: 10ppm•hr at 30 cm/sec face velocity
g Color change: Light blue to purple
h Storage temperature: 4oC to 25oC, (39oF to 77oF)
i Shelf life: 2 years at 4oC to 25oC, (39oF to 77oF)
j Service life: 2 years

The ammonia BTI 3 can be reused by replacing the exhausted ammonia indicator and top charcoal by fresh ammonia indicator assembly and charcoal.

Ammonia BTI 3 Refill Kit Item No.433-5000 Includes:

1- One Ammonia Indicator Assembly (Item No. 433-1600)
2- Activated Charcoal (Item No. 433-5200)
3- Two Porous Plugs (Item No. 436-1400)
4- Three Cotter Pins (Item No. 436-1300)

Miniature-Hook Pick (Item No. 431-9100) Optional
