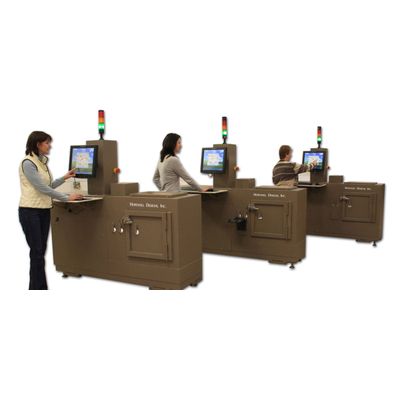

Model BX3 -Box Calibrators
Box calibrators are fully-shielded, self-contained irradiator systems requiring no separate control room. Compact and easy-to-use, box calibrators provide convenient and versatile calibration of a wide range of radiation survey meters and personnel dosimeters. Many calibration laboratories are challenged by an increasing workload and dwindling resources. The Hopewell Designs model BX3 Box Calibrator can help by automating many time consuming daily tasks. The fully automated BX3, uses the modular LabVIEW software and is computer controlled with touch screen technology. Irradiator set-up and calibration, exposure rate and decay corrections are all done with a touch of the screen.
Ease-of-use is a high priority in our BX3 design. Features include a large door (16” x 15”) and oversized leaded glass-viewing window (10.5” x 16.5”). The Model BX3 is equipped with a precise, rigid, dual-axis linear positioning track that provides amazing accuracy (+/- 0.1 mm). Instrument placement is easy and repeatable using jigs, etched grid, and dowels on the instrument platform. Versatility of the Model BX3 is enhanced by the use of single or dual sources from 300 mCi to 2200 Ci, dual axis positioning track and ports for extendable probes. With its fail-safe design, redundant interlocking and password-protected software, the Hopewell Designs Model BX3 Box Calibrator exceeds all federal, state and local government regulations and provides a safe, secure, easy-to-use system that will increase efficiency and accuracy.
- Single or dual Cs-137 source models
- Self-contained exposure chamber
- 0 - X8000 attenuator set
- Large viewing window
- Dual axis positioning track
- Ports for extendable probes
- Concise size
- High precision and repeatability assure accurate calibrations with low uncertainty
- Electronic operation or fully-automated computer control.
- Computer control provides extensive automation to reduce errors and improve efficiency
- Easy to use with an intuitive operator interface.
- Inherent fail-safe design
- Highly reliable
- Calibration available with traceability to NIST
- Exposure rates: from 5 µSv/hr to 13 Sv/hr (0.5 mR/hr to 1,300 R/hr) at center of instrument platform. *as high as 200 Sv/hr (20,000 R/hr) when extended into beam port
- Cesium-137 sources: may hold up to 2 individual sources. recommended capacity of 370 MBq (10 mCi) up to 81.4 TBq (2,200 Ci)
- External exposure rates: <50 µSv/hr @ 30 cm (<5 mR/hr @ 12") from the surface
- Size: 181cm (71”) x 97cm (38”) x 206cm (81”) tall
- Weight: 3,200 kg (7,055 lbs)
- Power: 115 VAC, 1Φ, 50-60 Hz => 15 A Circuit or 230 VAC, 1Φ, 50-60 Hz => 7.5 A Circuit
- Air Requirements: Air supply: 690 kPa (100 psi) dry, unlubricated. Flow required: <15 liters/minute (<0.5 SCFM)
- Jigs/fixtures
- Temperature, Pressure, Humidity Monitors
- Calibration equipment & service
