Model BZM -SBR Wastewater Treatment Plants

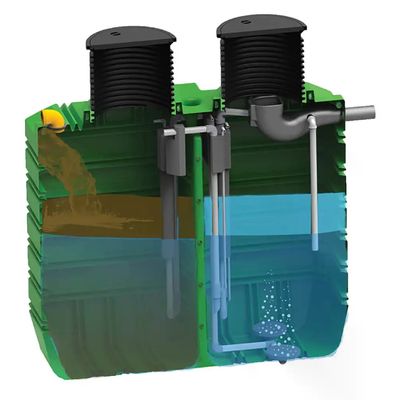

The SBR wastewater treatment plants use the Sequential Batch Reactor process to provide effective treatment of sewage water in various applications in scale from residential to large communities. The SBR process provides for full Carbon and Nitrogen removal and produces high quality effluent that is odor free and suitable for re-use including irrigation and toilet flushing. Due to its high quality it may also be discharged into sensitive water courses. SBR systems use in-ground site constructed concrete chambers with ancillary equipment including aerators and pumps centrally installed and controlled in an adjacent machinery housing room. Sequencing batch reactors or SBRs use a separate pre-treatment section to mechanically hold back solids and a biological aeration and settling tank.
