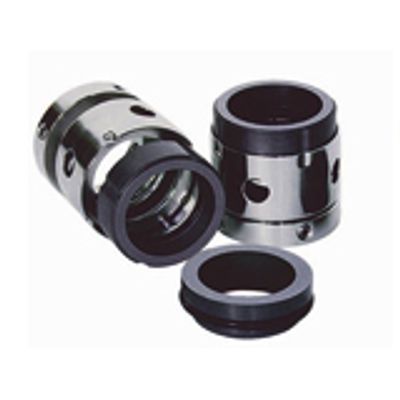

Model C45 -Single Spring Seal for Corrosive Fluids
Corrosion Resistance. Strong Anti-corrosive Property. Complies with DIN 24960 and GB6556. Available in Cartridge Structure . Four Standard Seal Parts Locating-Ring, Compensation Components, Secondary Seal and Seal Face. Applicable for Centrifugal Pump and Other Rotating Shaft Equipment in Standards of DIN 24960 and GB6556. Applied Industries Oil Exploitation and Transferred, Water Treatment Industries, Chemical, Chemical Fiber Industry.
Design Features:
Single Thicker Spring
Prevent the seal from clogging and sticking, and to ensure two faces abut on each other tightly
Modular Structure
Modular style combination
Located by Set Screw
Easy fixing and simple adjustmen
The Springs are permanently confined in Cartridge Seats that prevent the parts from falling out
Both “O” and “V” Rings are available.
Operating Limits:
Pressure: Up to 1.5Mpa
(not applicable for evacuation condition)
Speed: Up to 25m/s (5000rpm)
