Endress Hauser AG

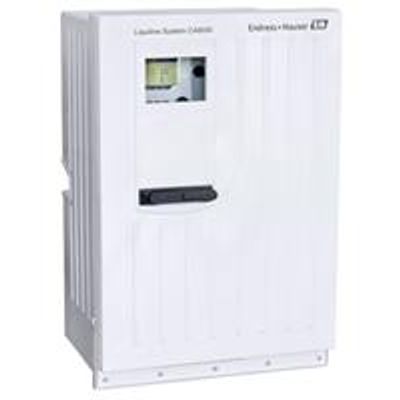

Model CA80SI - Silica Analyzer Liquiline System

From

0

Colorimetric system for the monitoring of boiler feedwater, steam, condensate and ion exchangers. Liquiline System CA80SI provides precise online analysis of silica and helps protect plant equipment from glass-like deposits ensuring optimum performance of turbines and ion exchangers. Its unique combination of peristaltic and high-precision dispenser pumps enables extremely reliable operation and low maintenance. The silica analyzer offers advanced diagnostics and can be easily adapted to your process needs by retrofitting up to 6 channels and connecting up to 4 Memosens sensors.

  • Protection of expensive plant equipment in the power industry: The silica analyzer monitors trace levels of silica in water steam cycles helping to avoid glass-like deposits on the equipment surfaces.

  • Early online detection of critical silica levels ensures efficient power plant performance and optimizes maintenance and blowdown cycles by early counter measures.

  • Standard heteropoly blue method allows direct comparability to lab results.

  • Best reliability: Unique combination of peristaltic and high-precisions dispenser pumps ensures stable operation and low maintenance.

  • Optimized investment: The option of up to 6 sample channels meets changing process needs at any time, and connection of Memosens sensors allows an easy upgrade to a complete measuring station.

  • Seamless integration into process control systems thanks to digital field buses such as Modbus, EtherNet/IP or PROFIBUS.

  • Advanced diagnostics and remote access via web server enable fast remedy in case of errors.

The CA80SI silica analyzer monitors trace levels of silica in the power industry and utilities:

  • Indication of the purity of boiler feed water and steam

  • Provision of early warning for condenser leaks

  • Early warning of exhaustion of ion exchangers

  • Measuring principle

    Colorimetric

  • Characteristic

    Analyzer for silica in aqueous solutions

  • Measuring method

    Comply with standard colorimetric measuring principle - heteropoly blue method

  • Size

    Cabinet
    793 x 530 x 417 mm
    31.22 x 20.87 x 16.42 inch
    Stand housing
    1693 x 530 x 417 mm
    66.65 x 20.87 x 16.42 inch

  • Design

    Open design / cabinet
    Plastic ASA-PC

  • Process temperature

    5 to 45 °C (41 to 113 °F)

  • Ambient temperature

    5 to 40 °C ( 41 to 104 °F)

  • Process pressure

    1 to 5 bar (14.5 to 72.5 psi)

  • Sample flow rate

    60 to 250 ml/min (2.03 to 8.45 fl.oz/min)

  • Consistency of the sample

    particle free

  • Specials

    Easy upgrade to measuring station with up to four digital Memosens sensors
    Automatic calibration and cleaning
    User-configurable measuring, cleaning and calibration intervals
    optional up to 6 sample channels
    Flexible functionality and modular expandable
    Digital communication for remote access

  • Application

    Determination of silica concentration in boiler feed water
    Monitoring of water-steam-circuit and condensate
    Monitoring and optimization of reverse osmosis and desalination

  • Power supply

    100 ... 120 VAC / 200 ... 240 VAC ± 10%
    50 ± 1 or 60 ± 1.2 Hz

  • Output

    2x 0/4 ... 20 mA
    Optional: Webserver, Modbus, Ethernet/IP, Profibus DP

  • Input

    '1, 2, 4 or 6 measuring channels

    Optional 1 to 4 digital inputs for sensors with Memosens protocol
    '

  • Measurement range

    0.5 to 200 µg/l (ppb)
    50 to 5000 µg/l (ppb)

  • Consumables

    Reagents and standard solutions CY80SI
    Maintenance kit CAV800
