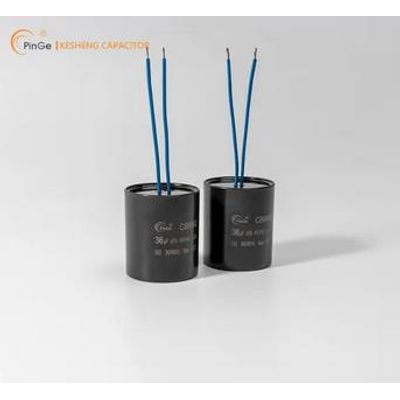

Model CBB60 - 300vac 30uf -Capacitor
Typical applications: cbb60 capacitor 300vac 30uf is broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for air conditioners’ fans,electric fans and exhaust fans etc.at comparatively low rated power.
Most popular related searches
- Reference standards GB/T3667.1, UL810, EN60252-1
- Rated voltage UN 250~500 VAC
- Rated capacitance CR 1~60uF
- Capacitance tolerance ± 5 %
- Operating temperature -25/70?; -40/70?; -40/85?; -40/105?
- Reference standards: GB/T3667.1, UL810, EN60252-1
- Rated voltage UN: 250-500 VAC
- Rated capacitance CR: 1~60uF
- Capacitance tolerance: ±5%
- Operating temperature: -25/70°C; -40/70°C; -40/85°C; -40/105°C
- Storage temperature: -40 / 70°C
- Dissipation factor (DF): 20x10-4at20°C,50Hz
- Insulation resistance(IR): >2000MO .uF (500Vdc,60s)
- Voltage test between terminals (Ut-t): 2 x UN for 5 s
- Voltage test between terminals with case: 2200 Volt for 2 s
- Expected life: CLASS B-10000 hours CLASS C - 3000 hours
- Dielectric material: Metalized polypropylene film
- Terminal: Wires
- Case: Plastic
- Filling: V-0 Flame retardant epoxy resin V-0
- Remarks :When the altitude is more than 2000m,the effect of convection cooling and external insulation should be considered.:
