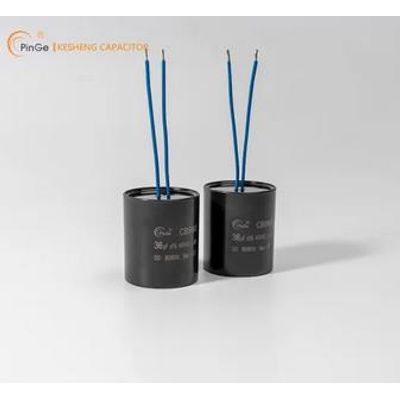

Model CBB60 -Deep Well Pump Oil-immersed Capacitor
Typical applications: It is mainly suitable for starting and running AC motors such as water pump , washing machine and shredder.
Most popular related searches
fire and explosion protection
deep well pump
water pump
flame retardant
explosion protection
washing system
reference standard
fire protection
well pumping
deep well
CBB60 Motor Run and Start AC Capacitors
- Non-inductance winding structure, Segmented film
- Excellent self-healing performance
- Small equivalent series resistance
- Low temperature rise
- Stable performance,high relibility
- With safety, fire protection and explosion protection
- Reference standards: GB/T3667.1, UL810, EN60252-1
- Rated voltage UN: 250-500 VAC
- Rated capacitance CR: 1~60uF
- Capacitance tolerance: ±5%
- Operating temperature: -25/70°C; -40/70°C; -40/85°C; -40/105°C
- Storage temperature: -40 / 70°C
- Dissipation factor (DF): 20x10-4at20°C,50Hz
- Insulation resistance(IR): >2000MQ uF (500Vdc,60s)
- Voltage test between terminals (Ut-t): 2 x UN for 5 s
- Voltage test between terminals with case: 2200 Volt for 2 s
- Expected life: CLASS B-10000 hours CLASS C - 3000 hours
- Dielectric material: Metalized polypropylene film
- Terminal: Wires
- Case: Plastic
- Filling: V-0 Flame retardant epoxy resin V-0
- Remarks :When the altitude is more than 2000m1the effect of convection cooling and external insulation should be considered.:
