Kesheng Electronic Co., Ltd.

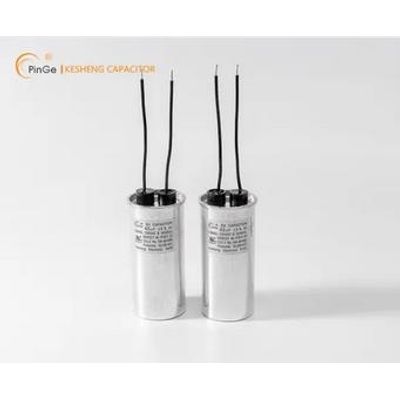

Model CBB65 -Terminal Type Capacitor
Typical applications: It is mainly suitable for starting and running single-phase AC motors such as washing machine, air conditioner, water pump and shredder. And AC filter circuit for power electronic equipment and UPS power supply.
Most popular related searches
fire and explosion protection
air conditioner
water pump
explosion protection
washing system
reference standard
wash water pump
water conditioning
air pump
fire safety
CBB65 Motor Run and Start AC Capacitors
- Non-inductance winding structure
- Excellent self-healing performance
- Small equivalent series resistance
- Fast heat dissipation,Low temperature rise
- Corrosion resistant,Stable performance,high reliability
- Safety, fire and explosion protection
- Single/Dual/Oval design for different requirements
- Reference standards: GB/T3667.1, UL810, EN60252-1
- Rated voltage UN: 250-500 VAC
- Rated capacitance CR: 2~100uF
- Capacitance tolerance: ±5%
- Operating temperature: -25/70°C; -40/70°C; -40/85°C; -40/105°C
- Storage temperature: -40 / 70°C
- Dissipation factor (DF): 20x10-4at20°C,50Hz
- Insulation resistance(IR): >2000MQ.uF (500Vdc,60s)
- Voltage test between terminals (Ut-t): 2 x UN for 5 s
- Voltage test between terminals with case: 2200 Volt for 2 s
- Expected life: CLASS B-10000 hours CLASS C - 3000 hours
- Dielectric material: Metalized polypropylene film
- Terminal: Terminal
- Case: Aluminum
- Filling: Oil
- Remarks: When the altitude is more than 2000m,the effect of convection cooling and external insulation should be considered.:
