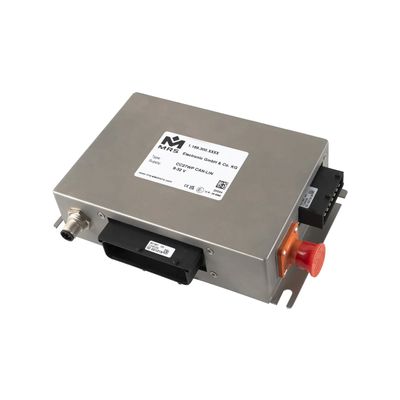

Model CC27WP -Powerful and Robust 32-Bit Controller
The CC27WP is a powerful and robust 32-bit controller with 27 inputs and outputs as well as 16 freely configurable I/Os with voltage and current diagnostics. The waterproof module is therefore very flexible and can be used in any industry. It is particularly suitable for your vehicles with many loads to be controlled and high load currents, such as ambulance vehicles. The CC27WP continuously detects the current of the consumers and can switch them off when a defined value is exceeded. This means you do not need a classic fuse box. You are also provided with a high degree of flexibility, as motors can also be controlled with the aid of 4 half-bridges and up to 3 CAN interfaces are available for processing or forwarding commands. Due to the use of CAN bus, cabling can also be simplified, e.g. by establishing a direct connection to HMI systems such as displays or control elements.
In the basic version, the CC27WP has a total of 16 I/Os with voltage and current diagnostics, which can be expanded to up to 32 powerful outputs via ordering variants. With its 7 multifunction inputs, you can also switch the measuring range, measure the frequency or activate a switchable pull-up resistor and a switchable current sink.
Inputs and Outputs
Number of pins: 42
In-/Outputs (total): 27
Inputs (total): 7
Inputs (analog): 7
I/Os (total): 16
I/O (Output PWM capable, integrated current measurement INA): 4
I/O (Output PWM capable): 12
Halfbridge: 4
Switching current: ∑ 135 A @ 85°C
Reference voltage output: 1
Analog input (optionally): 1
Interfaces
CAN interface(s): 3
CAN FD interface(s): 3
LIN interface(s): 1
Serial Interface(s): RS232, RS485
Mechanical Properties
IP rating: IP6K8
Housing material: V4A
Dimensions: 200 × 119.4 × 50 mm
Programming
Programming software: MRS Applics Studio
General Information
Temperature range: -40 °C to +85 °C
Operating voltage: 9-32 V
Current consumption: 40 mA @ 24 V/ 60 mA @ 12 V
Quiescent current (12V): 300 µA
Quiescent current (24V): 600 µA
Processor architecture: 32 bit
