Model CCD100 -Controller

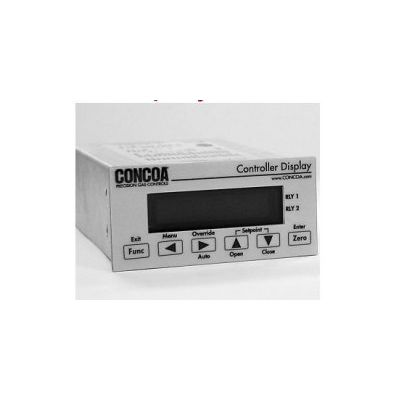

CONCOA`s CCD100 Controller Display features a graphical VFD display which displays the relevant units and generates ease of use menu structures.   The Controller Display contains digital comms. alarm outputs, configurable units and multiple transducer supplies as well. The unit`s firmware can also be customized for specific applications. The CCD100 not onry contains internal setpoint functions but also features external inputs which can be used to generate slaved setpoint from another processor/transducer. The unit can also be programmed for tamper-resistant functionality by hard wiring the interface connector.  The user can lock out the menu command and/or zero out the command button. The user-friendly menu structure allows the CCD100 to be programmed easily. All menus feature backwards and forwards options as well as up and down numeric inputs.
