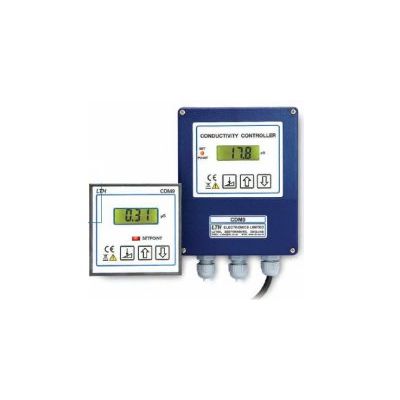

Model CDM9 Series -Conductivity Indicator Controller
FromLTH Electronics
The CDM9 is available as a panel or surface mounting Conductivity Indicator Controller in an IP66 enclosure with a 3.5 digit liquid crystal display. The CDM9 provides a single pole change over relay to operate a solenoid valve, dosing pump or visual or audible alarm. The relay can be set to energise on a rising or falling conductivity enabling the CDM9 to be used for a variety of water treatment applications.
Most popular related searches
conductivity indicator
water treatment system
water treatment
conductivity controller
solenoid valve
dosing pump
solenoid dosing pump
temperature switch
solenoid pump
dosing valve
A LED on the front panel indicates when the relay is energised. The CDM9 has a digital set point adjustment using the front panel membrane switch. Manual temperature compensation can be switched in or out with the process temperature set using a PCB mounted potentiometer with a fixed 2 % / ยบ C slope.
- IP66 surface and panel mounting enclosure
- Ideal for use in small water treatment systems
- 3 user selectable ranges
- Digital set point adjustment
- Single changeover relay
