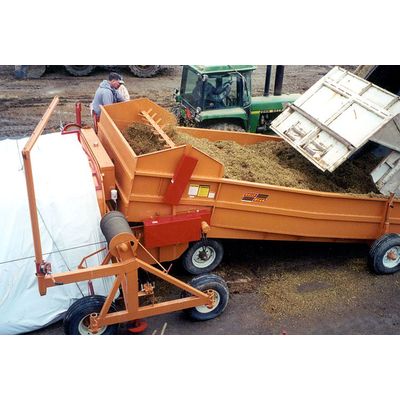

Model Centerline Pro -Bagger

• Self-cleaning tunnel means no need for tunnel clean out.
• Bagger and platform are individually wheeled for portability

Standard Features

• 100” rotor with 92 packing bars with tine caps
• Puts up to 15% more in the bag than bottom-pack units
• Packs more punch from the center, with less H.P., for tighter, more uniform bags of feed
• Higher quality feed due to more even packing
• Self-cleaning tunnel
• 14” cable drums with single-wrap cables for up to 200’ bag
• 2” diameter cable drum shaft
• American-made RC-160 roller chain main roller drive
• 3 7/16” bore tapered TIMKEN roller bearing on drive and idler end
• Dual mechanical brake calipers
• Bag lift with cradle
• Dual 667X pintle apron chains
• Provides positive load movement
• Hydraulic cable rewind
• 2” double endplate
• Prevents silage juice from reaching the main motor bearing
• Remote grease bank for all rotor bearings
• Four-port hydraulic quick connect
• Makes setup easy
• On-board hydraulic jacks
• Makes it easy to convert to operating position
• Self-contained hydraulic system with 55-gallon reservoir
• 100” patented Centerline raised packing rotor
• Bondioli 2201 Gearbox
• 540 or 1000 rpm PTO
• Same gearbox as 12’ Centerline, rated at 150 horsepower

Optional Features:

• Hydraulic brake with hand pump and gauge
