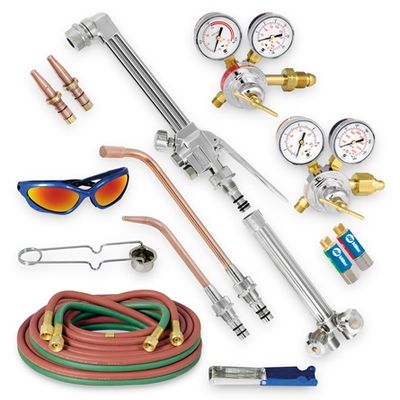

Model CGA 510 -Medium Duty Combination Torch Outfit with Acetylene/Propane Tips

SHARE
Complete oxy-fuel system that can handle high gas flow for faster cutting, heating, brazing and welding. The MC509 cutting attachment can cut up to 6-inch thick steel with appropriate tip.
Most popular related searches
surge relief valve
relief valve
ball valve
pressure relief valve
high-pressure valve
PTFE valve
gas safety
corrosion gauge
corrosion protection
Double-Tube Handle
Tube-within-a-tube design provides strength while reducing weight.
Internal Threads
Threads are protected from damage if torch is dropped.
Adjustable Valve Resistance
PTFE packing provides a gas-tight seal while allowing the "drag" to be adjusted to the individual preference.
Flo-Trol™ Valve
Eliminates seat burn out due to reverse flow of mixed gases.
Center Pre-Heat Valve
Usage for both left and right-handed operators.
Ease-on Cutting Oxygen Valve
Allows for smooth application of cutting oxygen reducing keyholing and slag blowback when piercing.
Dual Filters Including Sure Seat™
The regulator dual filter design protects the high-pressure seat from debris for reliable operation and long service life.
External Relief Valve
Protects regulator from damage due to inadvertent high-pressure surge. Relief valve will release excessive pressure and automatically reset.
Neoprene Composite Diaphragm
Resists corrosion for extended service life.
Graf-Tite® Soft Seat Tip
Protects the tip seat from nicking for longer use.   Learn More
Medium Duty Cutting Attachment
Cuts up to 6-inch thick steel
MC12 Series Medium Duty Cutting Tips
Slip-in cutting tips for general medium-duty hand cutting. Use with medium pressure acetylene and oxygen. MC12 can cut from 1/4 in.(6mm) to 5/8 in.(16mm) thick metal.
MC40 Series (Two Piece) Medium Duty Cutting Tips
Two-Piece medium preheat cutting tips for hand cutting with propane and propane-based fuel gases. MC40-1 can cut from ½ in.(13mm) to 5/8 in.(16mm) metal thickness.
Silver-Brazed Connections
For extra protection, strength and leak resistance.
Nickel-Plated Finish
Deflects heat and resists corrosion.
Riveted Knobs
Will not come loose from the valve stem.
Silver-Brazed Nickel-Plated Torch Joints
Provides strength, leak resistance and heat deflection.
Stainless Steel Ball-Style Valves
Allows for smooth adjustment and positive seating to eliminate leaks.
Slip-in Tip Design
No wrench is needed allowing for quick and easy tip changes.   Learn More
Three Tube Construction
Keeps gases separate in the cutting attachment until mixed at the tip for safety. Mixed gas stays farthest away from the operator.
Triple O-Ring Seal
For easy 360-degree torch head rotation to reduce operator fatigue.
Nickel-Plated Bonnet with Forged Brass Body
Protects against corrosion.
2-Inch Regulator Gauges
The large regulator gauges are easy to read and are constructed from shatter-resistant polycarbonate lenses.
