Model CKX CK1 - Close Coupled Pumps

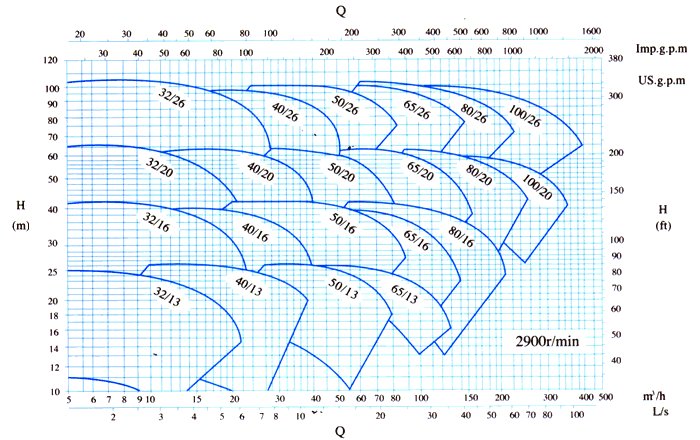

Capacities to 350 Heads to 100 metres Liquid temperature 15℃ up to +80℃ Operating speed 2900RPM Pressure PN 10, 16
- Water supply and transfer in municipal and industrial specifications Air-conditioning systems Pressure-boosting Circulation in cooling and heating systems Irrigation
- DIN24255 standardized close coupled pumps Interchanged with hydraulic parts from Type XA Two versions available:CK1 -casing without foot; CKX-casing with foot casted as one piece The pump and the electric motor have independent shafts, thus allowing to use standard motors. Fitted with mechanical seal.
