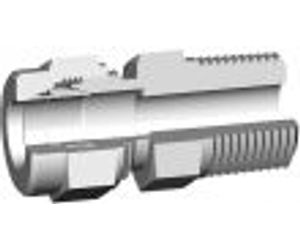

Model CMR -Threaded Male Connector (NPT & BSP) or Buttweld (BW)
FromTecval
The CMR two-ferrule compressing fittings are used to assemble a threaded or welding end to a metric or fractional tube. The resulting union is completely hermetic, both for high pressure and high temperatures.
Most popular related searches
- Easy and fast mounting.
- Resistant to Vibration .
- Hard fastening and union without twisting.
- Anti-leakage guarantee.
- Metric tube from 4mm. to 25mm.
- Fractional tube from 1/8" to 1".
- Threaded NPT ends according to ANSI B1.20.1.
- Threaded BSP ends according to ISO 7R-Rp.
- Buttweld BW ends according to ANSI B16.25.
