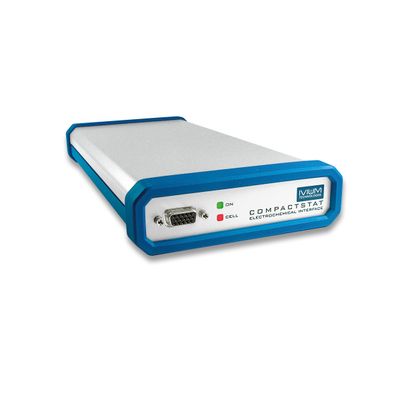

Model CompactStat.h -Mobile Electrochemical Measurement Station

• Low noise and galvanic isolation:
  The instrument is electrically isolated from power lines and PC. It has a superior noise immunity, and is capable of determining very small signals, essential for applications such as nano-technology. The instrument may also be applied in situations where the sample should be disconnected from a common ground (floating).
• Complete solution:
  The CompactStat.h offers a complete package, and all the standard electrochemical techniques are available in our software. The CompactStat.h also has an integrated high-performance Frequency Response Analyser for EIS measurements from 10µHz to 3MHz. All measurement and dataprocessing software is included (for Windows based PCs).
• Automation:
  Multiple analog and digital input & output ports are available for monitoring and control of peripheral equipment. This functionality is fully integrated in the software.
• Expandability:
  The CompactStat.h can be expanded with a wide variety of options and modules, including a Bipotentiostat, True Linear Scan generator, various power boosters and multiplexers.
• Hardware:
  • Automatic current range selection: 1pA to 1A/1mV to 10V
  • Automatic variable noise filter and potentiostat/galvanostat stability settings
  • Simultaneous acquisition of current/potential and up to 8 peripheral analog signals
  • Real time data display up to 500 pnts/s. Acquisition up to 100,000 pnts/s is stored in instrument memory
  • Applicable scanrates: 1µV/s to 10,000V/s
  • Minimum interval time: 10µs (0.125µs resolution)
  • Result optimalisation by automated tuned filters, gain amplifiers and DC-subtraction

The CompactStat.h is controlled via Ivium’s own IviumSoft. This versatile, yet intuitive software package allows instrument control, data management and analysis, peripheral instrument control, etc. IviumSoft can also interface with and be controlled from LabVIEWTM, C++, Delphi, etc. A full suite of IviumSoft is included with each instrument as standard.
