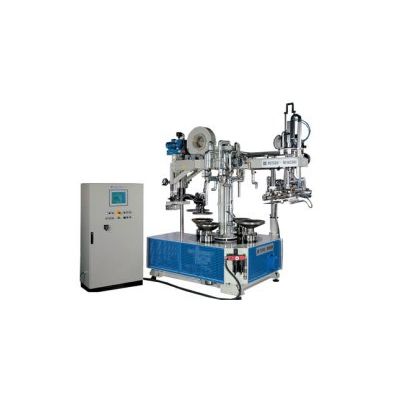

Model CRA 2000 -Automatic Spinning Machine
The CRA 2000 is a spinning machine with rotary table, with electric/electronic drive of the lasted generation. The main characteristic that distinguishes this machine from the existing ones available on the market is the possibility of simultaneously manufacturing 2 items with different shapes and dimension, up to a maximum diameter and height of 100 mm. Obviously, all the accessories of the machine: shears unit, take out and ring supporting arms to cover the mould, are designed to carry out this function: they are automatically positioned according to the mould and the items being produced.
Technical Characteristics:
- Electric power requirement: 25 Kw
- Centrifugation motor: 13,2 Kw
- Automatic cooling unit for mould and items by means of cooling fan: 3 Kw.
- No. 2 ring supporting arms t cover the mould with automatic insertion with controlled pre-loading
- No. 1 take out (pliers or vacuum pump) with variable stroke and grip.
- No. 1 pneumatic motor-driven shears unit with automatic positioning.
- Pneumatic installation: 6 bar
- Vacuum pump: pneumatic
- Self centering spindles Diameter 250mm.
Machine Dimensions
- Length: 3400 mm.
- width: 2530 mm.
- Height: 3100 mm.
- Net weight: 3500 Kg.
Machine Control:
Electric/electronic control cabinet, disjointed from the machine, equipped with:
- PLC
- Centrifugation digital frequency converter Kw 11
- Digital converter for table motion control 5,5 Kw. .
- Supervision software for machine programming, by means of PC with Touch Screen technology.
- Transportable control button panel, for manual operations.
Dimension Of Control Cabinet:
- Length: 1000 mm.
- Width: 600 mm.
- Height: 1800 mm.
- Net weight: 300 Kg.
