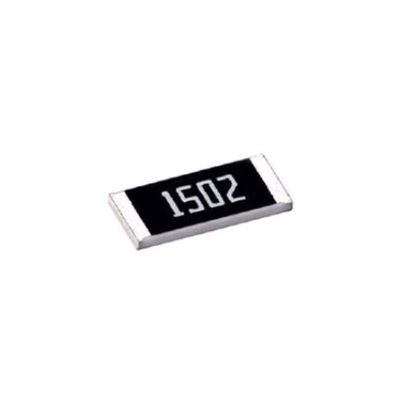

Model CRAG -Thick Film Chip Resistor
Series Number: CRAG. Description: Thick Film Chip Resistors – Automotive Type. Lead Free Status / RoHS Status: Lead free / RoHS Compliant. Moisture Sensitivity Level (MSL): 1 (Unlimited). Additional Information: AEC-Q200 Qualified.
Most popular related searches
Resistance: 1Ω~30MΩ
Tolerance: ±0.1%, ±0.5%, ±1%, ±2%, ±5%, ±10%
Power (Watts): 0.063W, 0.1W, 0.125W, 0.25W, 0.5W, 0.75W, 1W
Temperature Coefficient: ±100~±1800PPM/°C
Operating Temperature: -55 ~ +155°C
Package / Case: 0402, 0603, 0805, 1206, 1210, 1812, 2010, 2512
Applications: Automotive AEC-Q200
Mounting Type: Surface Mount
Size / Dimension: –
Height – Seated (Max): –
Thickness (Max): –
Lead Spacing: –
Lead Style: –
Features: Automotive Grade
Composition: Thick Film
Series: CRAG
Packaging: Tape and Reel
Part Status: Active
