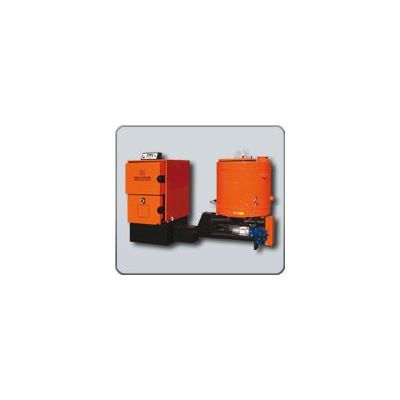

Model CSA -Three Ways Smoke Boiler
Type “Marine” three-ways smoke boiler with water production for heating; Boiler shell in steel; Doors for internal inspections and boiler cleaning; Cast iron burner with mechanical feeding system; Cylindrical combustible feeding hopper with mechanical stirrer; Fire fighting system in the hopper; Variable speed screew for automatic feeding; Primary and secondary combustion air system; Voltage: 230 V up to 100 kW, 400 V from 130 kW up to 2000 kW.
Most popular related searches
three-way valve
fire fighting system
multi cyclone
boiler water production
combustion air
combustive air
sanitary water
rotary valve
flow switch
level gauge
- Electronic board for combustible automatic ignition, fire maintenance and modulation (only for CSA 30-100 model boiler)
- Electronic control board (as specified above) with lambda sensor control device (only for CSA 30-100 model boiler)
- Electromechanical board (only for CSA 130-2000 model boiler)
- Electromechanical - electronic combined control board for combustible automatic ignition, fire maintenance and modulation (only for CSA 130-2000 model boiler)
- Electromechanical - electronic combined control board (as specified above) with lambda sensor control device (only for CSA 130-2000 model boiler)
- Ashes extractor device
- Refractory panels into combustion chamber
- Turbulator for heat holding inside the tubes nest
- Automatic combustible feeding system supplied with electric board and min/max screw level gauges on the hopper
- Kit for sanitary water production, (efficiency output: from 20 to 33 kW; complete with exchanger plates, pump circulation, flow switch and three way valve)
- Rotary valve (to prevent flame return into the hopper)
- Tube nest pneumatic cleaning system (60%-70% cleaning efficiency)
- Multi-cyclone for dust laying in the flue (flue and connections excluded)
- Container silo
