Model CT3015 -Underwater Colour Camera
FromC-Tecnics

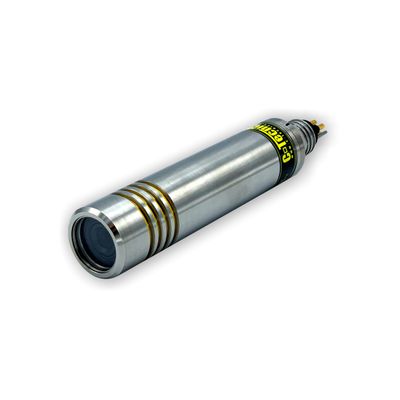

What It Does: Compact High Resolution Subsea Colour Camera. At 135mm long with a diameter of 30mm, and weighing only 280g, the CT3015 is one of the smallest & most economical cameras on the market. The compact design, robust titanium housing and high resolution colour image makes it an ideal camera for diving and ROV operations, as well a range of other subsea applications. The CT3015 Camera is also available in a monochrome version.
Most popular related searches
underwater camera
underwater inspection ROV
underwater inspection
ROV operation
subsea camera
monochromator
underwater ROV
inspection ROV
Code: CT3015
Description: Mini Colour Camera
Code: CT3015-SS
Description: Mini Colour Camera, Stainless Steel
Code: CT3015-TI
Description: Mini Colour Camera, Titanium
Code: CT3015M
Description: Mini Monochrome Camera
- Sensor: 1/3” Ex-View HAD CCD
- Lens: 3.6mm
- Angle of view in air: 96°
- Horizontal Resolution: 1000 TV Lines
- Signal to Noise >52dB
- Video Output Signal 1.0Vp-p Composite 750hms
- Power Requirements: 12-24 Volts DC +/- 10%, 100mA
- Sensitivity 0.001Lux/F1.2
- Window Material: Sapphire Glass
- Operating Temperature: -10°C – 50°C
- Storage Temperature: -30°C – 70°C
- Dimensions: 135 x 30mm diameter
- Depth Rating 6000m
- Underwater Inspection
- Underwater Survey
- ROV
