Datacolor
Model Datacolor 45IR -Portable Spectrophotometers
FromDatacolor

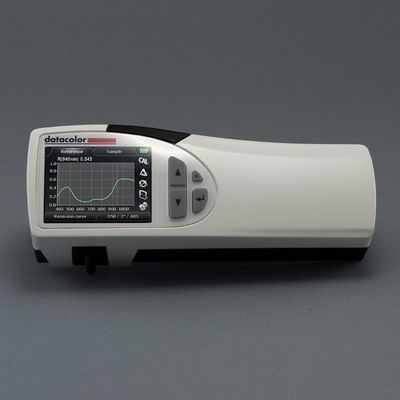

The portable 45IR spectrophotometer measures the color of security inks and stops banknote fraud in its tracks. Designed for quality control and formulation of security ink and secure documents, the Datacolor 45IR is a unique portable 3-in-1 solution that combines a spectrophotometer, VIS-NIR spectroscopic sensor and a densitometer. The 45IR comes with unique features designed specifically for color management, formulation and inspection in the printing of secure documents where color control is critical and banknote fraud protection is paramount.
Most popular related searches
portable spectrophotometer
VIS-NIR spectroscopy
spectrophotometer
NIR spectroscopy
VIS-NIR
color measurement
NIR spectrophotometer
NIR sensor
VIS spectrophotometer
colorimetry
- 3-in-1 colorimetric, NIR and densitometer functionality
- Printing industry standard 3mm aperture and 0/45 geometry
- Spectral range of 380-1100mm
- High repeatability and inter-instrument agreement ensures total confidence in your results
- Seamless integration with Datacolor Tools for quality control
- Seamless integration with Datacolor Match Pigment for formulation needs
- Datacolor 45IR Spectrophotometer – NIR – Densitometer
- Calibration Certificate
- USB Mini to USB Cable
- Charging console with white standard
- Datacolor Users Guide
- USB drive with software service
- Electrical/Environmental Requirements
- Power 100-240 VAC
- 47 to 63 Hz 60 VA
- Absolute Operating Environment RS232
- 0º to 40º C
- 20-85% RH, non-condensing
- Software Requirements*
- TOOLS Plus v2.0.8
- MATCH Pigment Plus v3.0
- MATCH Pigment Plus W/S v3.0
* Sold Separately
