Model DBS -Vertical Bar Screen
Screen is composed of bars obstructing the solids present in the effluent. Cleaning of the screen is achieved by means of 2 rakes with teeth moved by 2 chains.
Most popular related searches
wastewater screen system
vertical bar screen
screening system
wastewater screen
bar screen
wastewater system
inclined bar screen
water screening
conveyor screen
water screen

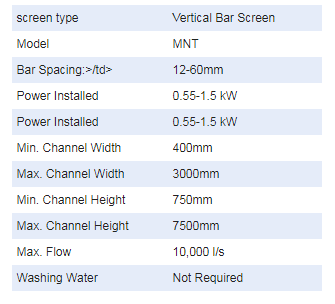

- Translation speed of the teeth: 5÷6 m/min.
- Inclination of the screen compared to the vertical: 15°.
- Spacing from 12 up to 60 mm.
- Frame is made with metal plates with a thickness of 3‐4 mm.
- Gear‐motor shaft and crowns are manufactured in micro alloy steel.
- Translation chains type rollers chains are manufactured in stainless steel AISI 304 or AISI 316.
- Cleaning system is made in stainless steel AISI304 or AISI 316. The cleaning system crawls on the upper surface of the rake, causing the removal of the screenings conveyed from the same rake.
- Discharge chute: the discharge chute is manufactured in stainless steel AISI 304 or AISI 316.
