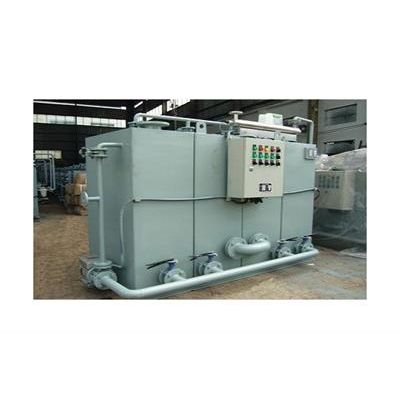

Model DFCWS-5-9-25 - Marine Compact Domestic Sewage Treatment Plant
From WSZ- Underground Sewage Treatment Equipment
The sewage treatment plant is applicable to treat the sewage from the onboard ship toilets to meet MEPC159(55)international standards of discharge. The Sequencing Batch Reactor and microfiltration membrane is used to digest organic pollutant. There are two types: integral type and combined type. The plant has small size and fast installation.
Description
- capacity:5-25people
- material :carbon steel
- Product description: Marine domestic sewage treatment plant
Principle Description
The Sequencing Batch Reactor, microfiltration membrane and ultra-violet disinfection have combined to method is uses to treat the sewage from the onboard ship W.C, kitchen and bathroom. Water quality after treated can meet the discharge standard of MEPC159(55). This is more effective than biological method, strong capability of resisting impact, and stable outlet quality, the structure is compact,without second pollution.
Discharge Water Quality
- M.P.N:≤ 100/100Ml
- TSS:≤ 35 mg/L
- BOD5:≤25mg/L
- COD:≤125mg/L
- PH:6~8.5
Characteristic
- the main part of marine domestic sewage treatment plant is designed to assembly type, so ,if the width of ship’s door is ≥350mm or ≥450mm, the plant can get in the ship.
- the plant is automatic operation, also manual operation, low noise, easy operation and maintenance.
- using ultraviolet disinfection technology, it is complete sterilization and green environmental protection, it can avoid second pollution.
