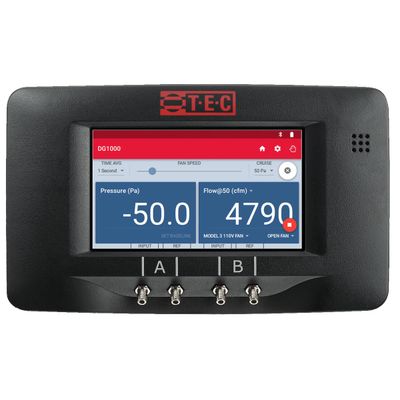

TEC - Model DG-1000 -Digital Pressure and Flow Gauge

DG-1000 adds improved functionaily with latest round of free updates (July 2022)

• To get the latest capabilities, simply hit the update button on the DG-1000 homescreen when connected to the internet.

Latest update improves performance and enables new features

• Extends battery life by over 25% with Auto-dim feature
• Enhanced bluetooth connection and status informtation
• Improved workflow guidance – improving consistency of testing for new users
• High precision mode with 4th decimal point display for inH2O units – ideal for radon applications

Other Features

• Fast-charge & communication with USB-C.  See photo of back panel for details.
• Fast and easy connections to AutoTest app via Bluetooth
• Runs embedded apps – including Tubing Assistant which simplifies set-up and makes training new people easier
• High Resolution Touch Screen: Gives you improved visibility and usability with the touch of your finger
• Intelligent Micro-Processor: Puts the power of a mini computer in the palm of your hand
• Future-Proof Technology: Continually equips you with the latest software and app additions
• Accurate Readings at 0.9%: Upholds your confidence of accurate results from TEC equipment
• Intuitive Landscape Orientation: Makes holding the DG-1000 naturally comfortable.
• Fan Speed Slider: Lets you control your fan directly from the gauge for efficient testing
• Hold Function: Gives you time to record readings with ease
• Tubing Assistant: Guides the user through a series of questions to determine the proper tubing connections for your application.
• Lithium Batteries: Equips you with a rechargeable and replaceable power source on the job
• Product Compatibility: Works with all TEC equipment and software for seamless use
• Bluetooth, WiFi, USB and Ethernet Ports: Provides you with a variety of connection options
• Texturized Durable Case: Ensures optimal grip in rugged environments and protects your gauge from accidental damage
• Powerful Mounting Magnets: Provides dependable and convenient mounting options

Number of Independent Pressure Channels

• Two

Pressure Range

• -2,500 to +2,500 Pa (-10 to +10 in. H₂O)

Display resolution

• 0.1 Pa for readings 0-999.9 Pa
• 1 Pa for readings 1000 Pa and larger

Accuracy at Typical Use Conditions (1,2)

• 0.9% of pressure reading or 0.12 Pa, whichever is greater

Units of Measure

• Channel A – Pa, in w.c.
• Channel B – Pa, in w.c., CFM, CFM@25, CFM@50, CFM@75, ACH50, CFM@25/ft², CFM@25/100ft², CFM@50/ft², CFM@50/100 ft², CFM@75/ft², CFM@75/100 ft² (flow units of l/s and m³/h also selectable)

Auto-zero

• On start up and then once every 10 seconds. Tilt and motion compensation between auto-zeros.

Time Averaging

• 1, 5, 10 seconds and long-term (continuous update)

Operating Temperature Range (3)

• 42 degrees F to 115 degrees F

Storage Temperature Range (4)

• -4 degrees F to 140 degrees F

Display

• 480 x 272 pixels, 3.75 x 2.125 inches, capacitive touch screen

Display Backlight

• User adjustable – default 40%

Power

• Two 18650 Lithium Ion batteries, replaceable, with AC charger/power adaptor included.

Battery Life

• Over 15 hours of continuous use with default settings
• 13 hours of continuous use with default settings and wi-fi active
• Use of Bluetooth does not significantly alter battery life of approximately 13 hours of operation.

Auto-Off

• Adjustable from 10 minutes to 2 hours

Languages Supported

• English, German, Spanish, French, Italian, Norwegian, Dutch, Portuguese, Chinese

Dimensions

• 7.0 x 4.2 x 1.4 inches

Weight

• 15.7 oz

Calibration

• Meets ASTM Standard E779-03, E1554-07, CGSB-149.10-M86, EN 13829, ISO 9972, ATTMA Technical Standard 1, NFPA 2001, RESNET AND USACE.

Recommended Calibration Interval

• Four Years
