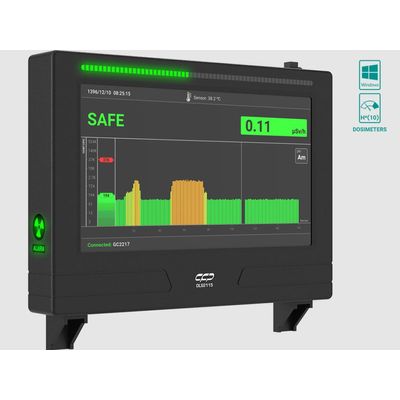

Model DLS2115 -Data Logger System

SHARE
The DLS2115 from Control Farayand Pasargad (CFP) is a stationary stand for logging data specially dose rate using several independent detectors. The DLS2115 has three versions with 2.4”, 7” and 10.1” display. This system cannot be used independently since it is designed to display information when operates together with the external probe produced by of CFP Co, to program its operation modes composition.
Most popular related searches
data logger
dosing system
dosimeter
dosimeter control
  • Isolated input/output
  • TFT and IPS full color display
  • Memory for many data points
  • Single or dual probe operation
  • Low dose/high dose rate system
  • PC software with remote application
  • Optional network capable with TCP-IP protocol
  • Several detector types can be connected to DLS2115
  • 2 serial interfaces RS232/RS485 or Ethernet/USB
  • Easily configurable to ensure reliable and safe operation
  • Durable, versatile
  • Ready for field operation
  • Full color LED bar graph indicator
  • Easy to use and low maintenance
  • Being robust and suitable for use in challenging
  • High resistance to impacts and vibration, dust moisture and electromagnetic interference
  • Conditions Audible alarm: real time data completely customizable alarm settings for all activities

The operation of the device is controlled with a simple menu and soft key. The instrument system power supply with 12V DC. Up to 128MB (STD Version 8MB) of data can be stored locally and transferred via serial interface to an external computer. An RS232 interface is already built-in so that no external adapter is required. Data transfer can be done using the CFP protocol via the USB interface. Operation of the DLS2115 is carried out with soft key located on DLS2115 which has adjustable menu panel. All parameters and information including important information during the measurement such as alarm conditions, raw data, alarm thresholds and further parameters are easily accessible via software. If the dose rate unit changed, the results are automatically renormalized. Up to 32 units can be operated with a twisted pair bus cable in a RS232 network with a maximum length of 1200m. In TCP-IP version, this number has been extended to 128 units.
