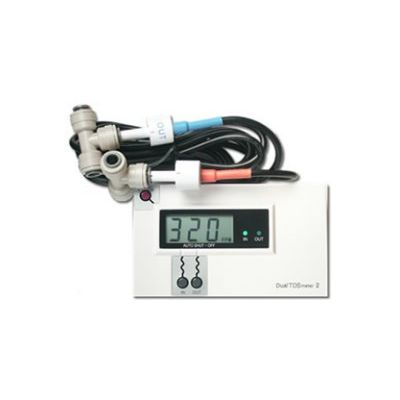

Model DM-2 -Commercial In-Line Dual TDS Monitor

FromHM Digital, Inc.

SHARE

Install on industrial systems such as car washes, window washing, manufacturing, and food processing. UPGRADED APRIL 2012! The newly upgraded model features digital calibration, low battery indicator, improved accuracy, longer battery life (2 years), longer auto shut-off time (3 min), diagnostic error messaging, and shielded sensor cables. (Upgraded features below are in red.)

Most popular related searches

metering system

industrial water

Highly efficient and accurate due to its advanced microprocessor technology.
Displays TDS levels of the Feed Water and Product Water with in & out electrode probes.
Auto-Off function conserves battery power. The unit shuts off automatically after 20 seconds.
Dual Range - Measures from 0-999 ppm, with a resolution of 1 ppm. From 1000 to 9990 ppm, the resolution is in 10 ppm increments, indicated by a blinking `x10` image.
Factory Calibrated: our meters are calibrated with a 342 ppm NaCl solution. Meters can be recalibrated with a mini-screwdriver.
Comes equipped with 1/4 inch Mur-lok Quick-Connect T-fittings. Also available with 3/8" or 1/2" fittings.
Installs quickly and easily.

Designed for commercial/industrial applications.
Stronger, water-resistant casing.
Calibration can be done individually or simultaneously on each line.
Improved design, including an extra large, easy-to-read LCD display.
Longer, waterproof, shielded cables.
Variable mounting bracket.

Range: 0-9990 ppm
Accuracy: ±2%
Conversion Factor: NaCl (avg. 0.5)
Cable Length: 46" (including sensor)
Calibration: Factory calibrated to NaCl 342 ppm. Re-calibration can be done separately for each line, or simultaneously for both.
Power source: 2 x AA batteries (included)
Battery life: Approx. 12-18 months
Size: 11.6 x 6.8 x1.8 cm (4.6 x 2.6 x .7in.)
Weight: 201.3 g (7.1 oz.)
