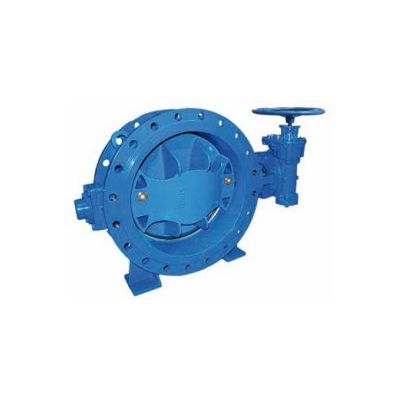

Model DN200 – DN3000 (EPDM) -Flanged Eccentric Butterfly Valve
High-grade materials for fully rated construction. All parts are protected against corrosion. Executions with: mechanical, electric, pneumatic drive possibility.
Most popular related searches
eccentric butterfly valve
butterfly valve
check valve
drinking water
flanged butterfly valve
PFAS
water valve
corrosion protection
- Face to Face in accordance to:
- DIN 3202-1 (EN 558-1 Series 13)
- Maximum Working Presure PFA:
- 16 bar / PN16 DN200-DN1000
- 10 bar / PN16 DN200-DN3000
- Working temperature:
- 0 to +65°C
- Construction complies to:
- EN 593 (DIN 3354)
- Flange Type:
- EN 1092-2 PN10 & PN16
- Coating:
- 250 μm FBE coating, external and internal
- Max flow rate:
- 3 m/s
- Application:
- Installation for water, potable water and other inert fluids for flow closing
