Model DR Series -Portable Scales

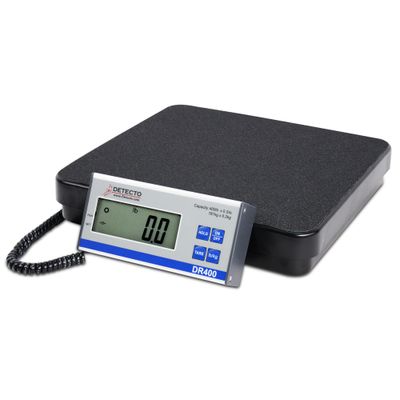

DETECTO’s DR150 and DR400 portable digital floor scales are excellent for use where space is limited. They feature a high-contrast backlit blue LCD, compact low-profile design for space-saving efficiency, slip-resistant texturized black rubber mat for traction, and coiled cable from the scale base allowing versatile positioning of the indicator. The scales are available in 150 lb x 0.2 lb and 400 lb x 0.5 lb capacities. The portable, lightweight 12-inch-square platform and large bold backlit blue readouts make this scale ideal for receiving departments, warehouses, distribution centers, and general-purpose weighing. The scale’s moveable display lets you place it on a work surface or mounted to the wall, wherever it’s most convenient for you to view. An optional black carrying case is available.
The DR series indicator’s versatile drop-in mounting bracket and coiled cable allows the display to be positioned on the floor or tabletop for quick mobile weighing use or you may permanently mount it on the wall using the included screws and plastic drywall anchors. Wall-mounting the remote display offers the additional advantage of eye-level readings and space-saving operation, which is important when weighing larger type items. The DR series scale includes a coiled cable to the indicator, mounting bracket, DC adapter, operation manual, and two mounting screws and two plastic drywall anchors.
- Compact, low-profile design for space-saving efficiency
- Coiled cable from scale base allows versatile positioning of the indicator
- Slip-resistant, texturized black rubber mat for traction
- 150 lb x 0.2 lb and 400 lb x 0.5 lb models available
- Battery or AC power for your convenience
- Lightweight, mobile weighing platform for easy transport
- Auto Shut-Off after 2 minutes conserves battery power
- Simple four-key operation is easy to use even for novices
- 12.5 in W x 11.9 in D x 2.2 in H / 318 mm W x 303 mm D x 58 mm H platform
- Pushbutton Tare will zero out the load on the platform
- Pounds and kilograms conversion with Units key
- Removeable steel platform that is durable and easy to clean
- Excellent for use where space is limited
- Raised buttons and audible beep confirmation of keypresses
- Two mounting screws and two plastic drywall anchors included for the mounting bracket
- The bracket can temporarily rest on any flat surface for mobile weighing
- Four non-skid feet for weighing stability
- Ideal for receiving departments, warehouses, distribution centers, and general purpose weighing
- Capacity (DR150): 150 lb x 0.2 lb / 68 kg x 0.1 kg
- Capacity (DR400): 400 lb x 0.5 lb / 180 kg x 0.2 kg
- Scale Base Platform Dimensions: 12.5 in W x 11.9 in D x 2.2 in H / 318 mm W x 303 mm D x 58 mm H
- Weight Indicator Dimensions: 6.8 in W x 1.6 in D x 3.2 in H / 172 mm W x 40 mm D x 82 mm H (minus bracket)
- Scale Base Platform Construction: Mild steel painted black with textured black rubber mat
- Keys: ON/OFF, HOLD, TARE, lb/kg
- Display Annunciators: Stable weight, negative weight, Hold, Net, kg, lb, Low battery
- Features: Backlight, low battery indicator, power-saving selectable timing auto shut-off, beeper, printer output
- Display Type: Liquid Crystal Display, 5 digit, 7 segment
- LCD Display Dimensions: 3.8 in W x 1.4 in H / 96 mm W x 35 mm H overall LCD size
- LCD Digit Dimensions: 1 in H x 0.4 in W / 25 mm H x 10 mm W per digit
- Cable Length: Coiled: 34 in / 863 mm Fully Extended: 90 in / 2,286 mm
- Power: 9V DC 300mA power supply or (4) AA alkaline batteries (not included)
- Tare: 100% of full scale capacity
- Zero: Established on power up routine and maintained by auto-zero circuitry
- Operating Temperature: 41º F to 95º F (5º C to 35º C)
- Operating Humidity: 35% ~ 90% RH
- Net Weight: 10.5 lb / 4.8 kg
- Shipping Weight: 12 lb / 5.4 kg
- UPC Code (DR150): 809161130003
- UPC Code (DR400): 09161130102
- Options: GBSS18-WM stainless steel wall-mount support handle and DR-CASE black carrying case with handle and zipper
