Model DR5000 -Circular Chart Recorders

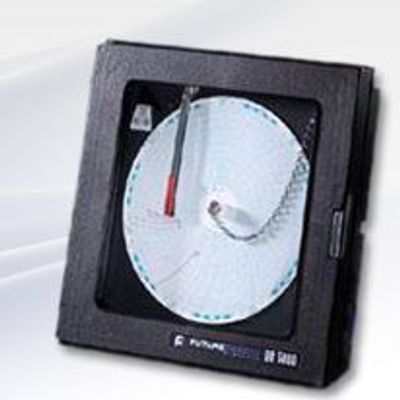

Future Design Controls DR5000 circular chart recorder is available in one or two* pen versions utilizing traditional drag pen. The DR5000 utilizes recent microprocessor technology combined with a robust pen & chart drive gear motor design offers industry leading reliability at significantly lower cost than older legacy designs.
DR5000 Ease of Use and Configuration
Operator interface & configuration are simple with a status LED providing all operational information.
The DR5000 unique configuration chart provides documentation on recorder configuration minimizing recorder configuration questions and issues of incorrect configuration.
DR5000 Options
The Options include configurable alarm outputs, Nema 4 [Nema 3 is standard], LED process value display and 9VDC battery back-up to operate the recorder for up to 48 hours without line power. Non-cataloged options for low voltage operation, input ranges, transmitter power supplies and more are available.
Traditional Ink Circular Chart Recorder Chart Types:
Partlow & Honeywell 10" charts
The DR5000 may be specified to accept either Partlow or Honeywell recorder charts allowing a form, fit and function replacement for Partlow MRC5000 and Honeywell DR4200 & DR4300 recorder only models (no PID control). The DR5000 accepting legacy charts allows both end users and OEMs flexibility to use the most cost effective circular chart recorder hardware without affecting their current procedures, part numbers and vendors for recorder charts.
Partlow charts run counterclockwise (CCW) while Honeywell charts are Clockwise (CW). The DR5000 ordering matrix allows selection of CCW or CW for chart rotation.
- 21 CFR Part 11 FDA Requirements
- AMS2750E Heat Treat Applications
- Ovens - Furnaces - Kilns
- Environmental Chambers
- Sterilizers/Autoclaves
- 10" Circular Chart Recorder
- Use Partlow or Honeywell charts
- Print your own chart version (higher accuracy)
- Easy Self Documenting Configuration
- Battery Back-Up (power recorder ~ 48 hours)
Enclosure Features:
- Panel Cutout 12.7" x 12.7", same as Partlow MRC5000 & Honeywell DR4300 10" Circular Chart Recorders
- Nema 3 standard, Nema 4 optional
- Standard Power and Process Variable Input
- Power Input: 120 or 220VAC standard. Contact factory for low VAC or VDC inputs.
- Universal process input: thermocouple, RTD, mA or VDC.
- T/C: J, K, T, B, R and S
- RTD: Platinum 100 ohm (.385 coefficient)
- mA/VDC: 4-20mA, 0-5VDC and 1-5VDC
- Special mA & VDC ranges available; i.e. 0-1VDC and others
- Configuration: Simple Configuration in less than 5-minutes.
- No Instruction Manual required.
- No DIP Switches to configure
- No cryptic display prompts
- Unit self documents its configuration on the setup chart
- Chart Styles (10" circular):
- Charts Ink Style
- Partlow style: specify Counter Clockwise (CCW)
- Honeywell style: specify Clockwise (CW).
- Charts Ink Style
- Enclosure Size:
- Panel Cutout: Industry standard 12.7" square.
- same as Honeywell DR4200/4300and Partlow MRC5000/7000.
- Panel Cutout: Industry standard 12.7" square.
- Nema 3 standard with Nema 4 optional
- Wall mounting brackets are standard
- Battery Back-up: Optional 9-volt battery operates recorder up to 48 hours without line power, 24 hours with optional LED process value display.
- Alarms: Optional
- configurable as Process, Deviation or Deviation Band.
- latching or non-latching
- Displays:
- Standard LED providing operational status flash sequence or steady on.
- Optional LED display for Process Value as well as useful for offset and alarm setup
* Two pen versions: inputs share a common ground. Isolated sensors are recommended (T/C`s should have ungrounded junctions).
