Model DRS-T -Dedicated Recirc System (Tankless)

TheDedicated Recirc Systemdelivers hot water only when there is a demand:

• Reducing Energy Costs
• Virtually Eliminating Pinhole Leaks

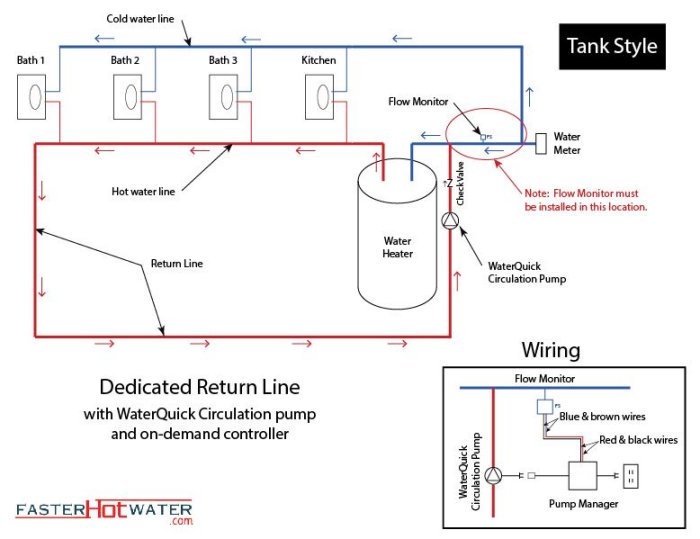

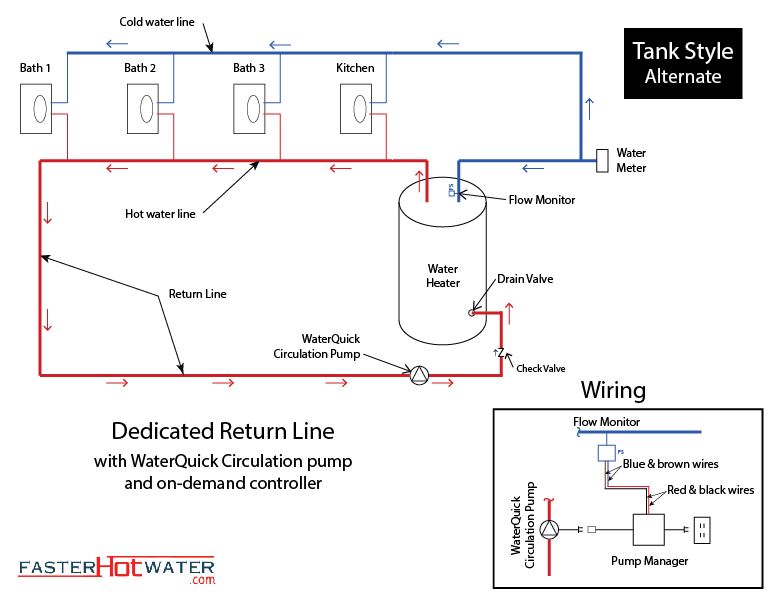

When theFlow Monitordetects a hot water demand thePump Managerturns on the pump and rushes water out to where it is needed.

ThePump Managerwill run the pump for approximately 3 minutes to ensure that hot water is available throughout your home.

True On-Demand Operation:

A demand from any hot water faucet or appliance in the house will activate the pump.

• No buttons
• No remotes
• No motion sensors
• No timers

Saves Energy:

As hot water moves through your house your it cools off and needs to be reheated.

By turning off the recirc pump the hot water stays in the water heater which is much more efficient at keeping heat.

• Studies show that hot water is used less than 3% of the time. That means, 97% of the time you could be saving energy!
• Extends the life of your pump, pipes and water heating equipment

Reduces Leaks:

Stopping hot water from circulating in your hot water pipes virtually eliminates pinhole leaks.

• It allows your water pipes to "heal" themselves by reforming a thin patina on the surface of the pipe
• 87% of all leaks occur in hot water pipes

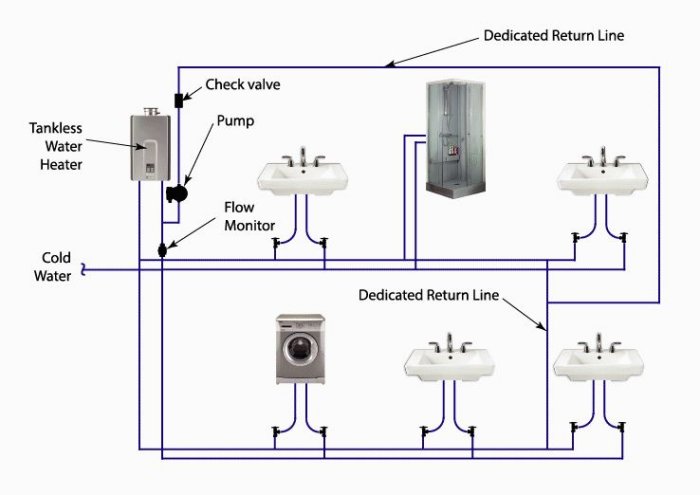

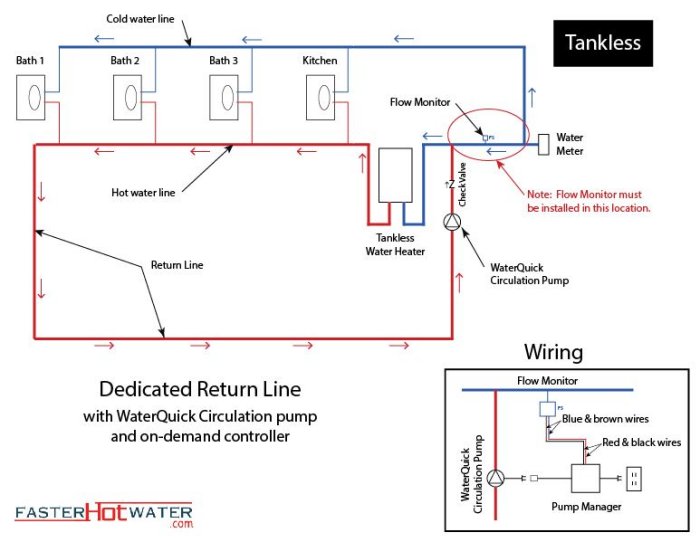

Works with tankless water heaters:

Turning on any hot water faucet will start the pump and the water heater. 3 minutes after the demand ends both the pump and the water heater turn off.

• Does not void manufacturer`s warranties like timers or continuous operation will

Circulation Pump:

Our high speed pumps are a custom designed component of our hot water circulation systems and include the following:

• 3/4" fittings
• 3 speeds - I, II and III, with III being the highest speed
• Made of stainless steel
• Equipped with a 3 position rocker switch to switch the operation mode from Auto (controlled by the Flow Monitor), Off and Move (run full time for troubleshooting purposes)
• 10` electric cord (110 vAC)
• Backed by our 3 year warranty

Flow Monitor:

• 3/4" fittings
• Minimum activation approximately 0.17 gpm (about the flow rate when a drip becomes a stream)
• Made of lead free brass
• Powered by the pump electrical cord
• Backed by our 3 year warranty

Pump Manager:

• Includes an Off-Delay timer that will keep the pump running for 3 minutes (this is adjustable) to heat up the recirc line.
• Standard 110/120 vAC power
• Adjustable time delay
• Backed by our 3 year warranty
