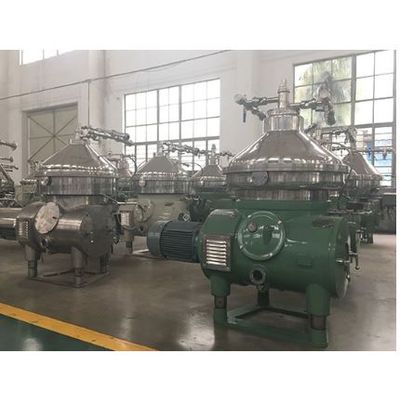

Model DRZ Series -Disc Separator

DRZ series disc separator have a wide range of applications in liquid-liquid or liquid-liquid-solid separation processes with very small amounts of solid phase. The mixed liquid is distributed between the disc passages through the small holes. Under the action of the centrifugal force, the light liquid with a small specific gravity moves toward the center along the disc cone, and is discharged under a certain pressure under the action of the centripetal pump; The heavy phase moves toward the inner wall of the drum and is discharged by the upper centripet pump; the solid phase material is deposited on the inner wall of the drum, and after a period of time, it is stopped and manually removed. Compared with the self-cleaning disc centrifuge, the DRZ disc separator is relatively simple and the production cost is relatively low because it does not have an automatic slagging
system.

The products design,manufacturing and tests are strictly implemented according to the national standard GB10897 and GB10898.The heavy phase outlets adopts full-sealed straight typejow noise and low resistance.

Its widely used for degumming and washing process of vegetable oil refinery and also used for liquid-liquid separation and solid-liquid separation in the industry of light industry,chemical)pharmaceutical,food industry and etc.
