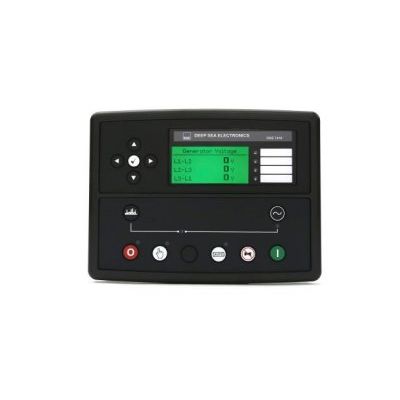

Model DSE7410 MKII -Auto Start Control Module
The DSE7410is a sophisticated mono display auto start control module packed with industry leading features to enhance single-set control. The module can be used across a wide range of diesel and gas gen-set applications.
Most popular related searches
site monitoring
emissions standard
environmental testing
electrical safety
safety information
level controller
environmental standard
load monitoring
safety system
gasket sealing
OVERALL SIZE
- 240 mm x 181 mm x 42 mm (9.4” x 6.8” x 1.6”)
PANEL CUTOUT SIZE
- 220 mm x 160 mm (8.7" x 6.3")
MAXIMUM PANEL THICKNESS
- 8.0 mm (0.3”)
WEIGHT
- 0.88kg
PRODUCT VARIANTS
- 7410-01 - 7410 Auto Start Control Module
- CAN and magnetic pick-up sensing.
- Configurable inputs/outputs (11/8).
- Fuel usage monitor and low level alarms.
- Remote communications (RS232, RS485, Ethernet, Modbus, RTU/TCP).
- Configurable event log (250).
- Integral PLC editor.
- Load switching, load shedding & dummy load outputs.
- Power monitoring (kWh, kVAr, kvAh, kVArh), reverse power protection, kW overload protection.
- Data logging (HDD/USB).
- DSE Configuration Suite PC Software.
- Tier 4 CAN engine support.
- Makes the module ideal for standard and electronic engine applications.
- Provides multiple installation options.
- Tracks the amount of fuel being used and sounds an alarm if over/under fuel use is detected.
- Provides secure and simple off site monitoring. All ports are continuously active.
- Provides access to historical alarms and operational status.
- Ensures additional applications are easily integrated into the system.
- Allows load options and dummy load requirements to be independently controlled.
- Provides clear accurate power measurement information.
- Provides current and historical status information.
- Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring.
- Ensures the control module can be used with the latest in modern electronic engine technology.
DC SUPPLYCONTINUOUS VOLTAGE RATING
MAXIMUM OPERATING CURRENT
CHARGE FAIL/EXCITATION RANGE
- 8 V to 35 V Continuous
- Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries
MAXIMUM OPERATING CURRENT
- 260 mA at 12 V, 130 mA at 24 V
- 120 mA at 12 V, 65 mA at 24 V
CHARGE FAIL/EXCITATION RANGE
- 0 V to 35 VOUTPUTSOUTPUT A (FUEL)
- 15 A DC at supply voltage
OUTPUT B (START)
AUXILIARY OUTPUTS E,F,G,H,I & J
VOLTAGE RANGE
- 15 A DC at supply voltage
- 8 A AC at 250 V AC (Volt free)
AUXILIARY OUTPUTS E,F,G,H,I & J
- 2 A DC at supply voltage
VOLTAGE RANGE
- 15 V to 333 V AC (L-N)
- 3.5 Hz to 75 HzBUS
VOLTAGE RANGE
- 15 V to 333 V AC (L-N)
- 3.5 Hz to 75 Hz
- MAGNETIC PICK UP
VOLTAGE RANGE
- +/- 0.5 V to 70 V
- 10,000 Hz (max)
ELECTRO-MAGNETIC COMPATIBILITY
- BS EN 61000-6-2
- EMC Generic Immunity Standard for the Industrial Environment.
- BS EN 61000-6-4
- EMC Generic Emission Standard for the Industrial Environment.
ELECTRICAL SAFETY
- BS EN 60950
- Safety of Information Technology Equipment, including Electrical Business Equipment.
TEMPERATURE
- BS EN 60068-2-1
- Ab/Ae Cold Test -30°C.
- BS EN 60068-2-2
- Bb/Be Dry Heat +70°C.
VIBRATION
- BS EN 60068-2-6
- Ten sweeps in each of three major axes.
- 5 Hz to 8 Hz @ +/-7.5 mm, 8 Hz to 500 Hz @ 2 gn.
HUMIDITY
- BS EN 60068-2-30
- Db Damp Heat Cyclic 20/55° C @ 95% RH 48 Hours.
- BS EN 60068-2-78
- Cab Damp Heat Static 40° C @ 93% RH 48 Hours.
SHOCK
- BS EN 60068-2-27
- Three shocks in each of three major axes 15 gn in 11 ms.
DEGREES OF PROTECTION PROVIDED BY ENCLOSURES
- BS EN 60529
- IP65 - Front of module when installed into the control panel with the optional sealing gasket.
