DT80 5-15 unversal inputs
DT85 16-48 universal inputs
Expandable Analogue channels using CEM20. DT80 up to 300 and DT85 up to 800
USB memory for easy data and program transfer
Flexible communications (USB, Ethernet and RS232)
Various remote connection options eg dial up modem

The dataTaker DT8x series are intelligent data loggers that provides an extensive array of features allowing them to be used across a wide variety of applications.

With support for multiple SDI-12 sensor networks, Modbus for SCADA systems, FTP and Web interface, 12V regulated output to power sensors, the DT8x is ready to be installed into environmental, industrial and many other types of monitoring projects.

Key Features

Standalone data logger with link to a PC
Dual channel isolation technology
User definable allocation of memory size and mode
Expandable to 800 universal analogue channels (with CEM20`s attached to a DT85)
8 digital input/output channels
12 counter inputs (4 high speed) and 2 phase encoders
Calculated measurements
SDI-12 (multiple networks)
2 serial `smart sensor` ports
Modbus for SCADA connection
Memory of approximately 10 million data points
FTP for automatic data transfer
Web Interface

Analogue inputs supported

Thermistors
Thermocouples
PT100/PT1000
Voltage
Current
Resistance
Frequency
Bridge connections (Strain gauges/Load cells)

The DT8x series comprises of 3 models:

DataTaker DT81 Maximum Analogue Input Capacity

1 Four wire Isolated/2 Two wire Isolated/3 Two wire common reference

DataTaker DT80 Maximum Analogue Input Capacity

5 Four wire Isolated/10 Two wire Isolated/15 Two wire common reference
With 5 x CEM20`s connected 100 Four wire Isolated/200 Two wire Isolated/300 Two wire common reference

DataTaker DT85 Maximum Analogue Input Capacity

16 Four wire Isolated/32 Two wire Isolated/48 Two wire common reference
With 15 x CEM20`s connected 300 Four wire Isolated/600 Two wire Isolated/800 Two wire common reference

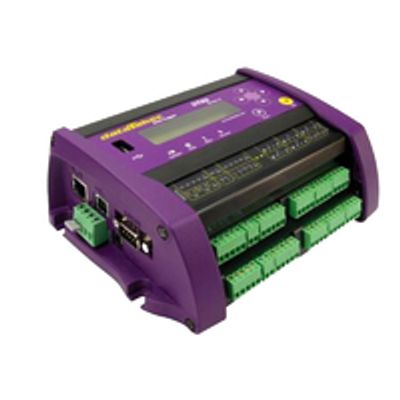

Model DT80 -Datalogger

DT80 5-15 unversal inputs
