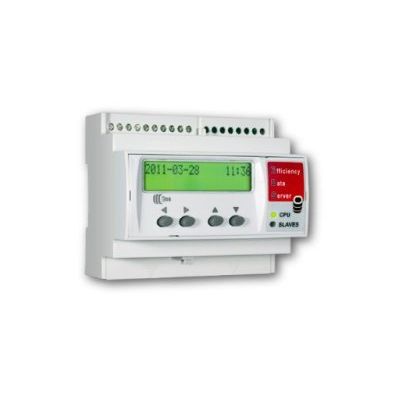

Model EDS -Embedded Data Logger
The EDS is a stand-alone data-logger fitted with six relay outputs and eight potential free digital inputs. Its embedded PowerStudio™ web server allows remote users to view data from attached devices without the need for any additional software. Data logging capability is standard with up to 5 additional Modbus RTU devices connected to the EDS. Data transfer initiated by the EDS using transparent communications tunneling techniques significantly reduces firewall/IT networking issues.
Most popular related searches
- Built-in PowerStudio™ web server to display data using a conventional browser
- NO additional software needed
- Data logger capability with 200 MB FIFO memory
- RS-485 Modbus communication to connect up to five slave devices
- Eight potential free digital inputs for detection of input status and/or number of pulses received from an external meter
- Six relay outputs for remote management of loads. Manually controllable via the web server and/or automatically through user configurable events
- Ethernet connectivity to LAN/VPN or Internet
- Data transfer initiated by EDS thus significantly reducing firewall/IT networking issues
- NTP time synchronization to UTC or local time-zone
- XML server allows seamless 3rd party BMS / SCADA integration
