EHP-Tekniikka Ltd. a member of Ecofoster Group Ltd.
Model EHP-DL6 or EHP-DL12 -Surface Water Level Monitoring System

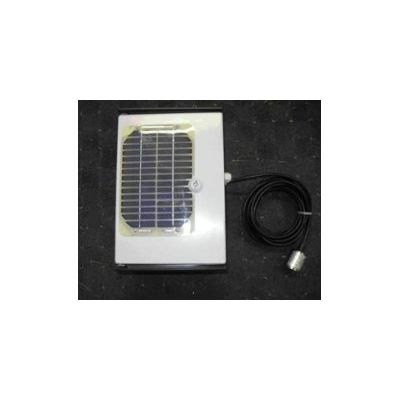

The EHP-Quality Monitoring System consists of either a EHP-DL6 or EHP-DL12 data logger with a gsm/gprs modem, level sensor, accumulators and solar panels. The data logger is programmed to monitor, process and transmit the data collected by the level sensor to a single pc, an automation system or to the internet.
Most popular related searches
surface water level monitoring
surface water level
water level monitoring
surface water monitoring
surface water
surface water quality monitoring
level monitoring
water level monitoring system
water monitoring
level sensor
- EHP-QMS is suitable for surface water level monitoring and also for surface water quality monitoring in field conditions;
- In order to monitor surface water level the suitable level sensor is connected to EHP-QMS;
- Size: max. 250 x 350 x 450 mm;
- Weight: 5 - 10 kg;
- Operating temperature is -40 °C…+85 °C;
- Integrated gsm/gprs-modem for data transmitting;
- Capacity of accumulator is 7200 mAh which gives energy typically for a year;
- SMS, ASCII or mA-form can be used for transmitting data;
- Monitoring interval starts from 1 minute and data transmitting interval starts from 10 minutes;
- Possibility to transmit also alarms in case the measurements exceed the threshold limits;
