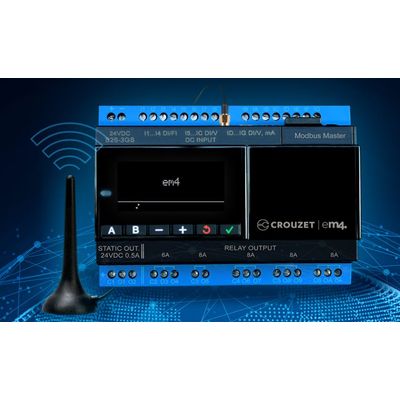

Model em4 Alert -All in One Telecontroller
em4 Alert has a built-in GSM modem to connect to any cellular network to control and monitor your applications, no need of any other internal or external network. Control with a simple text. Use your mobile to send instructions & receive data to your em4 via text message. Give cellular capabilities to your application using em4 Alert to control and monitor the devices connected to it, directly or through a Modbus network. Thanks to the cellular network your em4 telecontrollers can talk to each other and exchange data via text message without being connected to a local network or to a router. Assign users and keep control on who you want to interact with your em4, Keep it simple! Without modifying the programming, you can manage via text me saging your em4`s telephone numbers, email addresses, user profiles and user access rights
EVENTS ALERTS, STATUS FEEDBACK & ALARMS ANYWHERE YOUR ARE:
- Receive automatic alerts via text message and e-mail
- Decide what you want to be informed of
- Be always aware of your application
Save time and resources by letting em4 monitor your applications for you, it will notify you when any event occurs via email or will even send you text alarms to your mobile devices at any change
em4 Alert will also minimize the downtime of your machines and systems, since it will detect any failure and immediately alert you.
MEASURE AND RECORD THE KEY PARAMETERS OF YOUR APPLICATIONS
- Receive data log reports in .csv files by email or FTP *
- You decide if you want to receive your data periodically or request it just when you need it
FTP Server
- Collect datalogs sent by your em4 Alert
- Re-use the data to customize a preferred visualization
PLC PERFORMANCE...
26 I/Os: 16 inputs & 10 outputs (expand up to 46 I/Os)
- 4 inputs are configurable, digital or high-speed counting (up to 60 khz)
- 12 inputs are configurable, digital or analog for voltage (0-10 V and 0-VCC), current (4-20mA) and to connect sensors directly (LDR, NTC, pressure, flow, humidity & level)
- 8 relay outputs: 6 of 8 Amps and 2 of 6 Amps
- 2 Static/SSR PWM outputs
MADE SIMPLE
Smart Design: A PLC in a Logic Controller Body
- Due to its modular shape, em4 can be also used in distribution and modular panels
- You easily can use it as DIN Rail mount or convert it to Panel mount
- The interchangeable interfaces allows you to quickly add Bluetooth, Modbus RTU or USB capabilities*
* Use any of these while you keep using cellular functionality
