Model EMC-PRV -3 Way 2 Position, Proportional Pressure Reducing/Relieving Valve

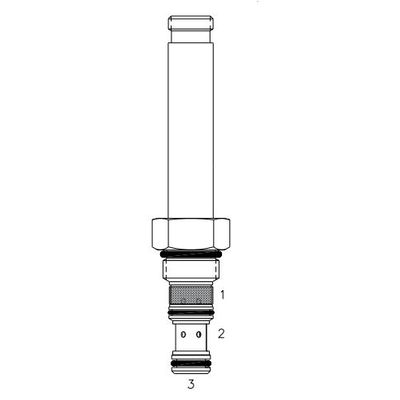

7 size, 5/8-18 thread, “Mini” series, solenoid operated, 3 way 2 position, proportional pressure reducing/relieving valve. OPERATION: When de-energized the EMC-PRV allows flow from (3) to (2) and blocks flow at (1). When energized, the actuator creates a force proportional to the pressure that will be regulated at port (3). Oil is supplied from port (1) to (3) until desired pressure is reached. If pressure at port (3) exceeds desired level, excess oil is vented to port (2) until desired level is reached.
