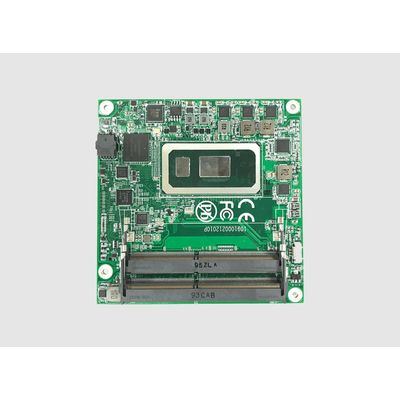

Model EmETXe-i92U0 -Compact Type 6 CPU Module

System

CPU: Soldered onboard 11th Generation Intel® Core™

- i7-1185G7E 1.8GHz (Base)/ 4.4GHz (Turbo)

- i5-1145G7E 1.5GHz (Base)/ 4.1GHz (Turbo)

- i3-1115G4E 2.2GHz (Base)/ 3.9GHz (Turbo)

- Celeron 6305E 1.8GHz processor

Memory: 2 x DDR4 SO-DIMM sockets

BIOS: AMI UEFI BIOS

Watchdog Timer: 1~255 levels reset

I/O Interface

USB Port: 12 x USB ports:

- 8 x USB 2.0 ports

- 4 x USB 3.2 ports

Serial Port: 2 x UART ports (RX/TX only)

Expansion Bus: 1 x PCIex4 lane*, 4 x PCIex1 lanes, I2C Interface, GPIO

DIO: 8-bit Digital Input/ Output

Storage: 2 x Serial ATA ports with 600MB/s HDD transfer rate

Ethernet Chipset: 1 x Intel® I219LM PCIe GbE w/ iAMT

Audio: HD audio link

TPM: Supports TPM 2.0

MIPI DSI: Supports MIPI DSI interface via on CPU module connector (OEM Request)

*Note: One PCIex4 lane is from CPU, and it can not be configured as four x1 lanes.

Mechanical & Environmental

Power Requirement: 8.5V~20V wide range voltage input, +5VSB +/- 5% support for S3

Power Consumption: 1.14A@20V

8A@8.5V (i5-1145G7E CPU Module only)

Operating Temp.: -40 ~ 85ºC (-40 ~ 185ºF)

Operating Humidity: 10 ~ 95% @ 85ºC (non-condensing)

Dimension (L x W): 95 x 95 mm (3.7” x 3.7”)

Display

Graphics Chipset: Integrated Intel® Iris Xe or UHD Graphics (Depends on CPU SKU)

Graphics Interface: LCD: Dual Channels 24-bit LVDS/

1 x Analog RGB port

3 x DDI ports (Max 4 independent display)

OS support

Windows 10 64-bit

Linux: Ubuntu

Ordering Information

EmETXe-i92U0-WT-1185G7E: 11th Gen. Intel® Core™ i7-1185G7E WT COM Express® Compact Type 6 CPU module, -40 ~ 85°C

EmETXe-i92U0-WT-1145G7E: 11th Gen. Intel® Core™ i5-1145G7E WT COM Express® Compact Type 6 CPU module, -40 ~ 85°C

EmETXe-i92U0-WT-1115G4E: 11th Gen. Intel® Core™ i3-1115G4E WT COM Express® Compact Type 6 CPU module, -40 ~ 85°C

EmETXe-i92U0-WT-6305E: 11th Gen. Intel® Celeron 6305UE WT COM Express® Compact Type 6 CPU module, -40 ~ 85°C

Optional Accessories

HS-92U0-C1: Heat sink with Fan (95x95x50mm)

HS-91U0-F2-T: Heat spreader, threaded standoffs (bore hole) (95x95x11mm)

HS-91U0-F2-NT: Heat spreader, non-threaded standoffs (bore hole) (95x95x11mm)

PBE-1705-F1: COM Express® Type 6 evaluation carrier board with SIO F71869ED module in ATX form factor

CBK-03-1705-00: Cable kit

1 x SATA cabl,

2 x COM Flat cables
