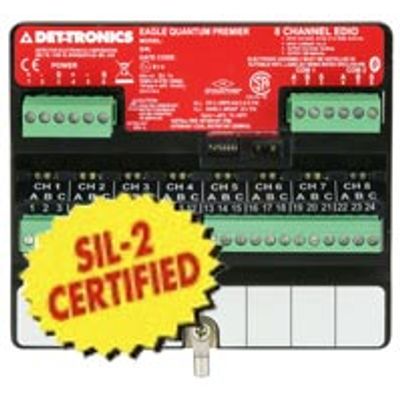

Model EQ3730 -8-Channel Enhanced Discrete I/O (EDIO) Module
The 8-channel EDIO module expands the input and output capability of the Eagle Quantum Premier system. The unit provides continuous and automated fire/gas protection while ensuring system operation through continuous supervision of system inputs/outputs and signaling line circuit (SLC). The EDIO module provides eight channels that can be configured as input/output, two-wire smoke/heat detector, Class A input, Class A output. Each input point can accept fire detection devices such as heat, smoke, or unitized flame detectors. Each output point can be configured for dry contacts, signaling or releasing output operation. Each channel on the module is provided with individual indicators for active and fault conditions.
- Monitors eight independent I/O channels
- Individual channels are configurable as input/output/two-wire smoke/heat detector/Class A input/Class A output
- Smoke/heat channels can support up to 15 two-wire smoke and heat devices per channel
- For Class A input and output wiring, two channels are required per Class A circuit
- Individual point Style is configurable as supervised or unsupervised
- Individual point Type is configurable for alarm/supervisory/other input styles, notification/releasing/dry contact output
- Meets the requirements of NFPA 72
- Panel or DIN rail mounting
- TuV and exida certified SIL-2
Each channel on the EDIO module can be configured as an input to accept a connection from manual alarm stations, heat sensors, smoke sensors, pressure sensors, or as an output for notification or releasing. Both input and output circuits can be configured as either a supervised or an unsupervised point. Each input point is also assigned a circuit type, such as:
Alarm, Trouble, Supervisory, Gas High or Low Alarm, or other. The EDIO module reports to the EQP Controller and activates the appropriate static or user logic in the EQP Controller.
The EDIO module supports ANSI/NFPA Class A, Style 7 communications with the Eagle Quantum Premier Controller.
To ensure reliable system operation, the module can continuously monitor its input and output circuits for opens and short circuit conditions. The Eagle Quantum Premier Controller also continuously monitors the status of the EDIO module as well as the status of each device connected to the EDIO module.
Led Indicators
LEDs on the front panel of the EDIO are provided for indicating device status conditions. The LED’s are tested upon power up to verify their operation. Red LEDs indicate an active condition. Yellow LEDs indicate trouble.
Mounting
The EDIO module is DIN rail or direct panel mountable for configurations requiring installation in NEMA or IP enclosures. DIN rail and mounting clip options must be specified at the time of order. Refer to the “Specifications” section for mounting arrangements and dimensions.
- Expands the capabilities of the Det-Tronics Eagle Quantum Premier™ system
- Monitors eight independent I/O channels
- Individual channels are configurable as an Input or Output
- Individual channels are configurable as supervised or unsupervised points
- Supports Class A wiring when two channels are combined
- Individual point Type is configurable for alarm/supervisory/other input styles, notification/releasing output
- Individual channel LEDs indicate Active and Fault status
- Provides remote I/O capabilities via LON/SLC
- Panel or DIN rail mounting
- Power LED display
- Plug-in wiring connectors
- Meets the requirements of NFPA 72
- RFI and EMI hardened (CE Marked).
- Supports up to eight conventional “two-wire” smoke/heat zones including the ability to reset latched zones. Does not require the use of “relay bases”.
