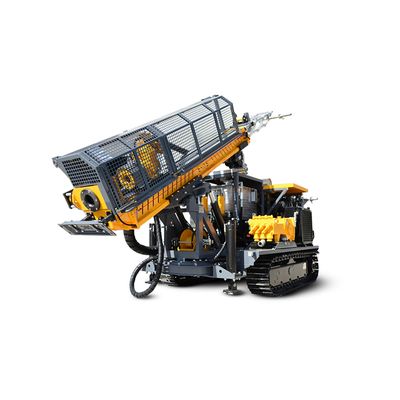

Model ESD-5 -Drill Rigs
Depth Capacity, N wireline 450 m, Core Drill Rig, Surface / Underground, Compact drill rig for mid-range drilling, Suitable for exploration and ore definition drilling in the mines, Suitable for ground investigation and grout hole drilling on construction sites, Suitable for coring or non-core drilling, Suitable for drilling all directions (including upwards) underground, Surface and underground versions, N size spindle, Gas spring rod holder, Synchronized chuck and rod holder for fast rod running
Type: Electric
Model: Siemens or ABB
Power: 45 kW 1450 rpm
Flush Pump Capacity: AMC 140 lt/min
Feed Stroke: 1.8 m
Hydraulic Feed Cylinder: 65 kN
Hydraulic Leveling Jack: O
Hydraulic Mast Dump: S
Rod Holder, Gas Spring: "H" size rod holder, gas spring (incl. N-WL size jaws)
Skid Mounted: S
Hydraulic Circuit for Water Pump: S
Hydraulic Wireline Hoist: S
Fuel Tank: O
Lightening Kit: O
Crawler Carrier: O
Rotation rpm and mud flow meter gauges: S
Drilling Angle: 360°
Color Code: RAL 1028
CE Certificed: S
Skid mounted fully hydraulic multipurpose drill rig; complete with synchronized rod handling system optionally can be equipped with turntable and hydraulic worm gear to allow drilling in all directions underground.: S
Suitable Drilling Diameter: 46-101 mm
Core Drilling: Exploration
WL Drilling: A,B and N sizes
NW: 275 m
B-WL: 600 m
N-WL: 450 m
The above figures only serve as a guideline and refer to vertical, downward drilling in homogeneous rocka
Spindle Inner Diameter: 78
Max Speed: 900 rpm
Max Torque: 1450 Nm
Chuck Equipped: N-WL set of jaws
Chuck Axial Holding Force: 100 kN
Hydraulic off-hole shift and of the rotation: manuel swing
Hydraulic Automatic Chuck: S
