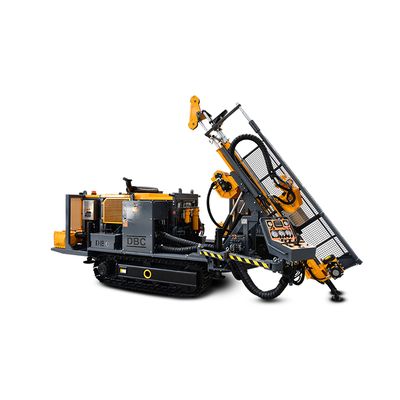

- Model ESD-9 - Drill Rigs
Model ESD-9 -Drill Rigs
Depth Capacity, N wireline 750 m, Core Drill Rig Surface / Underground, Compact and powerful drill rig for all kind of drilling purposes, Suitable for exploration and ore definition drilling in the mines, Suitable for ground investigation and grout hole drilling on construction sites, Suitable for coring or non-core drilling, Suitable for drilling all directions (including upwards) underground, Surface and underground versions, H size spindle, Gas spring rod holder, Synchronized chuck and rod holder for fast rod running,
Type: Electric
Model: Siemens or ABB
Power: 90 kW 1450 rpm
Flush Pump Capacity: AMC 140 lt/min
Feed Stroke: 1.8 m
Hydraulic Feed Cylinder: 87 kN
Hydraulic Leveling Jack: O
Hydraulic Mast Dump: O
Rod Holder, Gas Spring: "H" size rod holder, gas spring (incl. N-WL size jaws)
Skid Mounted: S
Hydraulic Circuit for Water Pump: S
Hydraulic Wireline Hoist: S
Fuel Tank: O
Lightening Kit: O
Crawler Carrier: O
Rotation rpm and mud flow meter gauges: S
Drilling Angle: 360°
Color Code: RAL 1028
CE Certificed: S
Skid mounted fully hydraulic multipurpose drill rig; complete with synchronized rod handling system optionally can be equipped with turntable and hydraulic worm gear to allow drilling in all directions underground.: S
Suitable Drilling Diameter: 46-114 mm
Core Drilling: Exploration
WL Drilling: A,B,N and H
NW: 750 m
B-WL: 1000 m
N-WL: 750 m
H-WL: 500 m
The above figures only serve as a guideline and refer to vertical, downward drilling in homogeneous rock
Spindle Inner Diameter: 101
Max Speed: 1200 rpm
Max Torque: 1850 Nm
Chuck Equipped: N-WL set of jaws
Chuck Axial Holding Force: 150 kN
Hydraulic off-hole shift and of the rotation: O
Hydraulic Automatic Chuck: S
