Model ESE-IR-200 Series -NDIR-GFC Gas Analyzer
We research and development of ESE-IR-200 series NDIR-GFC Gas Analyzer , mainly based on non-dispersive infrared photoelectric (NDIR) detection technology, infrared wavelength filtering technology (GFC) and self-designed long-term optical path gas absorption cell (L-Cell) technology and the realization of gas in the infrared band quantitative analysis, this instrument mainly measures CO, CO, CH4, and other gas concentration, with high precision, good stability, fast response time and other characteristics, fully meet the key control of carbon emission power plants, steel plants. Monitoring of greenhouse gases in the environment of non-point sources such as chemical parks and urban areas supports the verification of urban carbon emission monitoring and accounting results.
- Measuring gases: CO, CO2 ,CH4
- Measurement range CO: 0-10ppm ,CO2:0-1000ppm,CH4: 0-10ppm
- Measuring principle Non-dispersive infrared (NDIR) + wavelength filter (GFC) + long optical path (L-Cell)

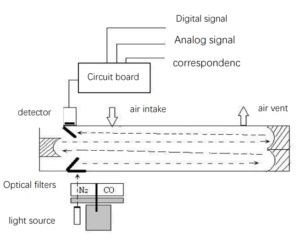

When the infrared light passes through the gas cell to be measured, these gas molecules have an absorption effect on the infrared light of a specific wavelength, and the absorption relationship obeys the Lambert-Beer absorption law. The infrared light emitted by the light source enters the gas cell through the GFC modulation wheel and is filled with The gas is absorbed by the bubbles of the gas to be measured, and all the way through the bubbles that do not contain the gas to be measured, the two paths of light are collected by the infrared detector after being converged by the lens, and the measurement signal and the reference signal are obtained after signal processing. By analyzing the two signals, the concentration of relevant components in the gas can be obtained.
- Using the most advanced infrared wavelength filtering technology (GFC) and long optical path gas absorption cell technology (L-Cell)), it can detect ultra-low range gas concentration.
- Equipped with a 7-inch capacitive true-color touch screen. It is more convenient to operate and more convenient to use.
- CO, CH4, sensors use infrared wavelength filtering detection technology, CO2 using dual-beam detection technology which can effectively solve cross-interference.
- Modular design: The light source, sensor, core circuit, gas chamber, etc. adopt a modular design, with high reliability, good scalability, and easy maintenance.
- The measuring range can be customized according to the demand, and the service
- Measuring principle: Infrared absorption (NDIR)
- measuring gas: CO, CO2, CH4
- Measurement range: (0~10/50/500/2000) ppm, other ranges can be customized.
- Sample gas flow: 0.8L/min±10%
- Response time: ≤60s
- Indication error: ≤2%FS
- drift: ≤±1%FS/24h
- Preheat time: ≤60min
- Output Interface: RS-232/RS-485/4-20mA
- Infrared correlation filter technology (GFC) and long optical path gas cell (L-Cell), with the ability to detect ultra-low gas concentrations.
- Low-temperature cooling infrared detector, low drift, high precision, low power consumption, fast response.
- High-performance infrared light source, long service life, special structure design to effectively avoid the impact of vibration.
- Internally self-tuningThe PID algorithm controls the temperature with high precision.
- The light source, detector, core circuit, etc. adopt modular design, with high reliability, good scalability and easy maintenance.
- Standalone gas detection module for easy integration into any detection system or control system.
- The dense-flow double detector with high sensitivity and reliability adopts the protection block of infrared radiation mode to detect the absorption signal of the gas under test.Compensation is less affected by external environmental factors than the single-channel measurement scheme, and the result is more stable without frequent calibration.
- Output signal: RS-232/RS-485/4-20mA.
- The measuring range can be customized according to customer needs, and the gas pool heating function is optional.
Here are the key features and components of an NDIR-GFC gas analyzer:
- Non-Dispersive Infrared (NDIR) Spectroscopy: NDIR is a widely used technique for gas analysis. It relies on the absorption of infrared light by specific gas molecules. The analyzer emits infrared light at specific wavelengths that correspond to the absorption bands of the target gas molecules. The light passes through the gas sample, and the intensity of the transmitted light is measured by a detector. The concentration of the target gas is determined based on the amount of light absorbed.
- Gas Filter Correlation (GFC): GFC is a technique used to enhance the selectivity and sensitivity of NDIR measurements. It involves the use of gas filters that are designed to selectively absorb or attenuate specific wavelengths of infrared light. These filters are placed in the light path between the infrared source and the detector. By using multiple filters and correlating the signals, the interference from other gases or background noise can be minimized, improving the accuracy of the measurement.
- NDIR-GFC gas analyzers are commonly used for the measurement of gases like carbon monoxide (CO), carbon dioxide (CO2), methane (CH4), and various hydrocarbons. They find applications in environmental monitoring, industrial processes, combustion analysis, and indoor air quality assessment. These analyzers offer accurate and reliable gas concentration measurements, helping to ensure safety, compliance, and process optimization in various industries.
