Dynamic Sealing Technologies, Inc.

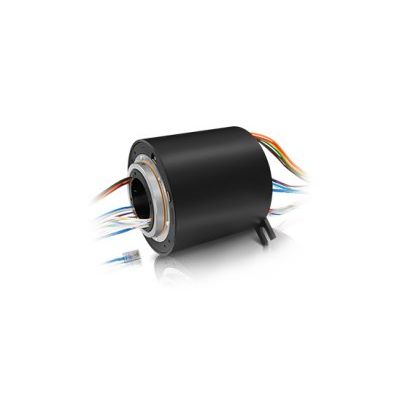

Model ESET Series -Ethernet Thru-Bore Slip Rings

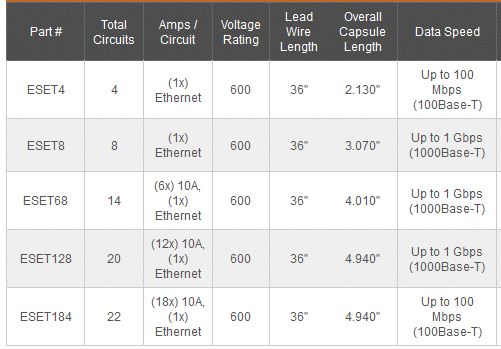

The ESET Series Ethernet thru-bore slip rings a 1.5 inch thru-bore for shaft mounting or fluid transfer and incorporate low-wear, fiber brush contacts. ESET Series slip rings provide 100 BaseT / 1000 BaseT Ethernet connections with a combination of 10 amp power connections. Standard models are available in 4, 8, 14, 20 and 22 circuits. Custom circuit / amp configuration options are also available.
- 100 BaseT / 1000 BaseT Ethernet cables available
- T568B wiring supplied terminated with RJ45 connectors
- Low electrical noise
- Low contact force per fiber
- Transfers analog and digital signals
- Compatible with some data bus protocols
- Temperature range: -40°F to 176°F (-40°C to +80°C)
- Lead types: 2/10 amp, 24/16 gauge silver/tin plated copper, Teflon
- Max operating speed: 250 RPM continuous
