Model ESP - Modular Mist Collector
From Mist Control
Our Smog-Hog electrostatic precipitator (ESP) mist collectors prevent hazardous emissions from escaping into the atmosphere. Situated inside or outside a facility, these modular system mist and fume collectors use a combination of filtering processes to precondition and clean even the most polluted airstreams. Developed specifically to collect heat-generated organic vapors and particulate, our mist collectors control hazardous emissions which pose a threat to the environment and your business.
Common applications include:
- Manufacturing processes - oily weld fume, furnaces, laser etching and cutting, metal sintering, oil mist or smoke, soldering, wax vapors, wire drawing
- Asphalts - coatings, hot mix plants and saturators
- Industrial cooking - coffee and peanut roasters, hot oil fryers, smokehouses
- Plasticizers - blown film, calandaring, curing oven, coatings, extrusion, nylon, plastics, polyethylene, polystyrene, texturizing, vinyl
- Textiles - tenter frame ovens, yarn coating and extrusion
- Rubber - buffing, curing, grinding, recycling

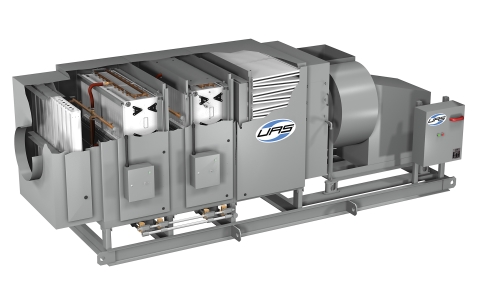

Ionizer—Charges particles entering unit using heavy-duty ionizer wires.
Collection Cell—Captures electronically charged particles like a magnet.
Cabinet—Constructed of 16-gauge steel with hinged door to provide access to collection components.
Power Pack—UL-Listed packs supply voltage to ionizer and collection cells for maximum collection efficiency.
Modular Design—Configured to meet your company’s space and process requirements.

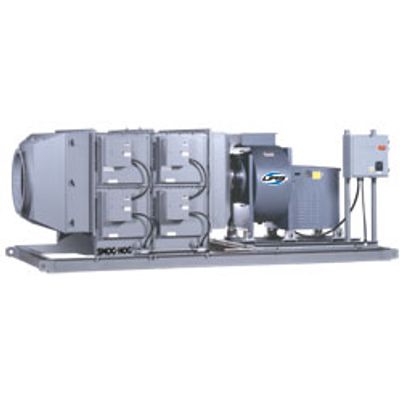

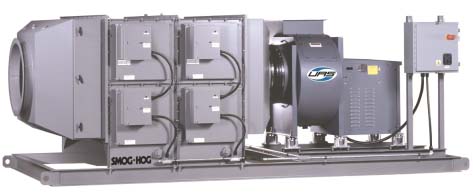

The Smog-Hog PSH offers the highest efficiency levels in emission collection, with the ability to handle airflow applications ranging from 750 CFM to 40,000 CFM. Each system uses two stage ESP technology, which combines an ionizer and a collection cell. The ionizer charges contaminants and the collection cell section removes them from the air. Submicron particles are removed from the air stream via an electronic field. The result is cleaner air and the elimination of costly compliance problems.

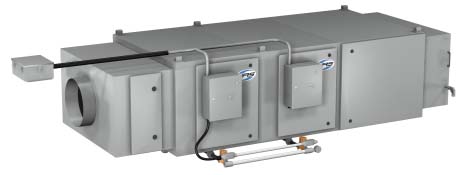

The Smog-Hog PSG is ideally suited for industrial exhaust mist and fumes from smoke and greasy odors. The unit's collection cell plates are aligned more closely to improve collection efficiency. And for routine maintenance, the PSG's 40 pound collection cells are easier to handle than competitive cells which often weigh 80 pounds or more. In addition, the PSG unit is fully welded to help ensure facility and worker safety by containing potentially corrosive emissions.
Electrostatic precipitation (ESP) technology is the key to the superior performance of our industrial mist collectors. Unlike bag or box filters that remove only the largest particles, ESP electrically charges even microscopic contaminants, then captures them magnetically in an aluminum collection cell. As a result, this sophisticated electronic solution leaves virtually no grease or hazardous particle untouched, releasing only clean air from the system. United Air Specialists' ESP technology ensures constant airflow, unlike barrier filters that can plug and become ineffective.
