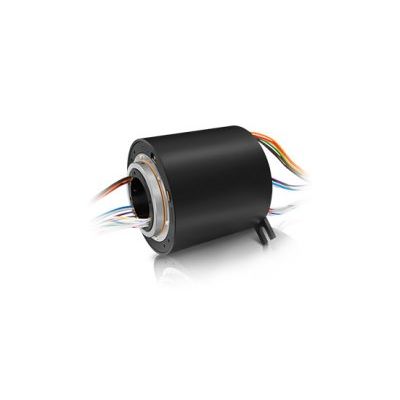

Model EST Series -Thru-Bore Slip Rings

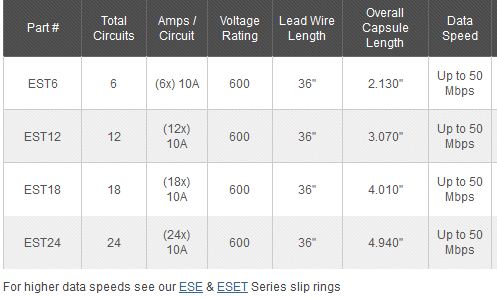

The EST Series thru-bore slip rings feature a 1.5 inch thru-bore for shaft mounting or fluid transfer and incorporate low-wear, fiber brush contacts. EST slip rings do not require lubrication and produce virtually no wear debris. Models are available in 6, 12, 18, and 24 circuits. Ethernet options also available.
Most popular related searches
- Low electrical noise
- Low contact force per fiber
- Transfers analog and digital signals
- Compatible with some data bus protocols
- Data speeds up to 50 megabits / sec.
- Temperature range: -40°F to 176°F (-40°C to +80°C)
- Lead types: 2/10 amp, 26/16 gauge silver/tin plated copper, Teflon
- Max operating speed: 250 RPM continuous
