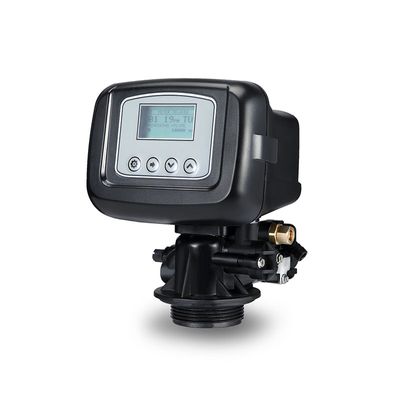

Model EZ2 -Residential Control Valve

Inlet / Outlet: 1" or 3/4"
Base: 2-1/2"
Center tube: 1.05" O.D.
Drain port: 1/2"
Brine Port: 3/8"
Cycles: Up to 7
Valve Material: PPO
Regeneration: Downflow
Service@15 psi: 20 gpm
Backwash@25 psi: 7 gpm

ROHS and CE certificate;

Simple mechanical design;

Wide ranges of injectors, B.L.F.C. and D.L.F.C.;

Non-corrosive & UV-resistant fiber-reinforced polymer valve body;

Economical-small annual power consumption,keeps the time and activates the piston valve mechanics with a single motor;

Designed with double backwash;

Straight drainage or elbow drain connector option.
